BA885 - Silicon PIN Diode

Infineon Technologies AG

Datasheet Details

Part number	BA885
Manufacturer	Infineon Technologies AG
File Size	976.52 KB
Description	Silicon PIN Diode
Datasheet	BA885 Datasheet
Additional preview pages of the BA885 datasheet.

📁 Similar Datasheet

BA885 - Silicon PIN Diode (Siemens Semiconductor Group)
BA886 - Silicon PIN Diode (Siemens Semiconductor Group)
BA887 - Silicon PIN Diode (Siemens Semiconductor Group)
BA80BC0T - 1A Variable/Fixed Output LDO Regulators (Rohm)
BA80BC0WFP-E2 - 1A Variable/Fixed Output LDO Regulators (Rohm)
BA80BC0WT - 1A Variable/Fixed Output LDO Regulators (Rohm)
BA8201 - Pseudo inductance for telephones (Rohm)
BA8201F - Pseudo inductance for telephones (Rohm)
BA8204 - Tone ringer IC for telephone set (Rohm)
BA8204F - Tone ringer IC for telephone set (Rohm)

Other Datasheets by Infineon Technologies AG

BA892 - Silicon RF Switching Diode
BA892-02L - Silicon RF Switching Diode
BA892-02V - Silicon RF Switching Diode
BA895 - Silicon PIN Diode

Full PDF Text Transcription

Click to expand full text

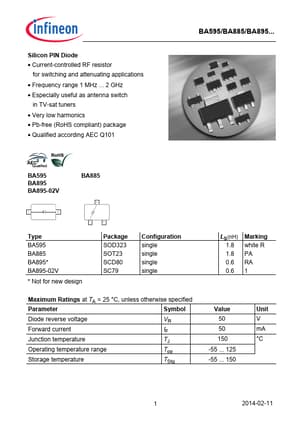

Silicon PIN Diode • Current-controlled RF resistor for switching and attenuating applications • Frequency range 1 MHz ... 2 GHz • Especially useful as antenna switch in TV-sat tuners • Very low harmonics • Pb-free (RoHS compliant) package • Qualified according AEC Q101 BA595/BA885/BA895... BA595 BA895 BA895-02V BA885 ! Type BA595 BA885 BA895* BA895-02V * Not for new design Package SOD323 SOT23 SCD80 SC79 Configuration single single single single Maximum Ratings at TA = 25 °C, unless otherwise specified Parameter Symbol Diode reverse voltage Forward current Junction temperature Operating temperature range Storage temperature VR IF TJ Top TStg LS(nH) 1.8 1.8 0.6 0.6 Marking white R PA RA 1 Value 50 50 150 -55 ... 125 -55 ...
