BA892 Datasheet - Infineon Technologies AG

BA892 Silicon RF Switching Diode

Silicon RF Switching Diode For band switching in TV/VTR tuners and mobile applications Very low forward resistance (typ. 0.45 Ω @ 3 mA) Small capacitance Pb-free (RoHS compliant) package Qualified according AEC Q101 BA592/BA892 BA592 BA892/-02L BA892-02V  Type BA592 BA892 BA892-02L BA892-02V Package SOD323 SCD80 TSLP-2-1 SC79 Configuration single single single, leadless single Maximum Ratings at TA = 25°C, unless otherwise specified Para.

BA892_InfineonTechnologiesAG.pdf

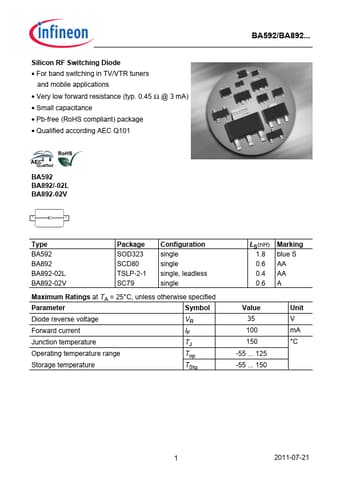

Preview of BA892 PDF
BA892 Datasheet Preview Page 2 BA892 Datasheet Preview Page 3

Datasheet Details

Part number:

BA892

Manufacturer:

Infineon ↗ Technologies AG

File Size:

966.42 KB

Description:

Silicon rf switching diode.
