BA891

Band-switching diode

BA891 Features

* Ultra small plastic SMD package

* Low diode capacitance: max. 1.05 pF

* Low diode forward resistance: max. 0.7 Ω

* Small inductance. PINNING PIN 1 2 DESCRIPTION cathode anode APPLICATIONS

* Low loss band-switching in VHF television tuners

* Surfac

BA891 General Description

cathode anode APPLICATIONS

* Low loss band-switching in VHF television tuners

* Surface mount band-switching circuits. DESCRIPTION The BA891 is a planar high performance band-switching diode in the ultra small SOD523 SMD plastic package. handbook, halfpage 1 2 Top view MAM405 .

BA891 Datasheet (217.68 KB)

Preview of BA891 PDF

Datasheet Details

Part number:

BA891

Manufacturer:

NXP ↗

File Size:

217.68 KB

Description:

Band-switching diode.

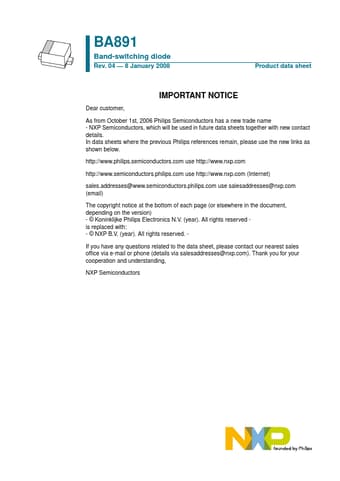

BA891 Band-switching diode Rev. 04
