BA892

Band-switching diode

NXP

BA892 Features

* Small plastic SMD package

* Low diode capacitance

* Low diode forward resistance

* Small inductance. APPLICATIONS

* Low loss band-switching in VHF television tuners

* Surface mount band-switching circuits. DESCRIPTION Planar, high performance band-sw

BA892 General Description

Planar, high performance band-switch diode in a small SMD plastic package (SOD523). PINNING SOD523 PIN 1 2 BA892 halfpage Marking code: 5. 1 Top view DESCRIPTION cathode anode 2 MBK124 Fig.1 Simplified outline. LIMITING VALUES In accordance with the Absolute Maximum Rating System (IEC 1.

BA892 Datasheet (62.20 KB)

BA892 Datasheet Preview — Preview of BA892 PDF

Datasheet Details

Part number:

BA892

Manufacturer:

NXP ↗

File Size:

62.20 KB

Description:

Band-switching diode.

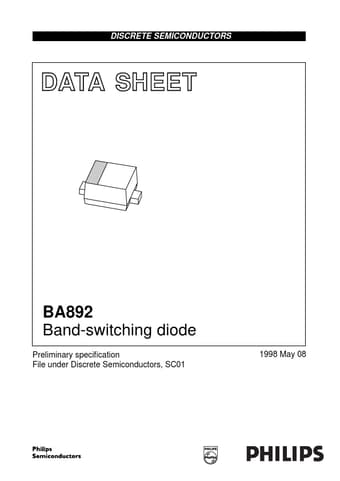

DISCRETE SEMICONDUCTORS DATA SHEET M3D319 BA892 Band-switching diode Preliminary speciﬁcation File under Discrete Semiconductors, SC01 1998 May 08 .
