BA892V-02V-GS08

Band Switching Diodes

BA892V-02V-GS08 Features

* Low forward resistance

* Small, space saving SOD523 package with low series inductance

* Small capacitance Applications

* Band switching up to 3 GHz

* Low loss band-switching in TV/VTR tuners Parts Table Part BA892V-02V Ordering code BA892V-02V-GS08 A Mark

BA892V-02V-GS08 General Description

The main purpose of the BA892V-02V is the Band Switching. Biased with a DC forward current for signals at frequencies over 100 MHz up to 3 GHz this diode behaves like a current controlled resistor and not as a diode any more. Depending on the forward current the forward resistance rf can be switched.

BA892V-02V-GS08 Datasheet (64.29 KB)

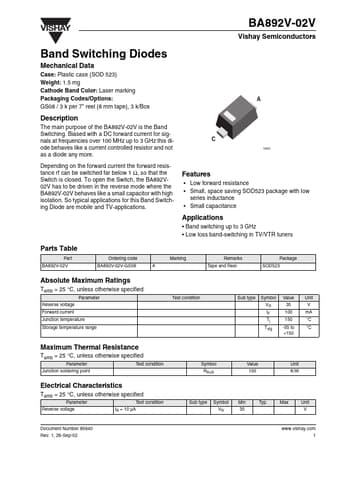

Preview of BA892V-02V-GS08 PDF

Datasheet Details

Part number:

BA892V-02V-GS08

Manufacturer:

Vishay ↗ Siliconix

File Size:

64.29 KB

Description:

Band switching diodes.
VISHAY BA892V-02V Vishay Semiconductors Band Switching Diodes Mechanical Data Case: Plastic case (SOD 523) Weight: 1.5 mg Cathode Band Color: Laser .
