BA895-02V - Silicon PIN Diode

This page provides the datasheet information for the BA895-02V, a member of the BA895 Silicon PIN Diode family.

Infineon

Datasheet Details

Part number	BA895-02V
Manufacturer	Infineon
File Size	976.52 KB
Description	Silicon PIN Diode
Datasheet	BA895-02V Datasheet
Additional preview pages of the BA895-02V datasheet.

📁 Similar Datasheet

BA895 - Silicon PIN Diode (Infineon Technologies AG)
BA891 - Band-switching diode (NXP)
BA891 - Band-switching diode (Leshan Radio Company)
BA892 - Band-switching diode (NXP)
BA892 - Silicon Rf Switching Diode Preliminary data (Siemens Semiconductor Group)
BA892 - Band-switching diode (Leshan Radio Company)
BA892 - Silicon RF Switching Diode (Infineon Technologies AG)
BA892-02L - Silicon RF Switching Diode (Infineon Technologies AG)
BA892-02V - Silicon RF Switching Diode (Infineon Technologies AG)
BA892V-02V - Band Switching Diodes (Vishay Siliconix)

Other Datasheets by Infineon

Full PDF Text Transcription

Click to expand full text

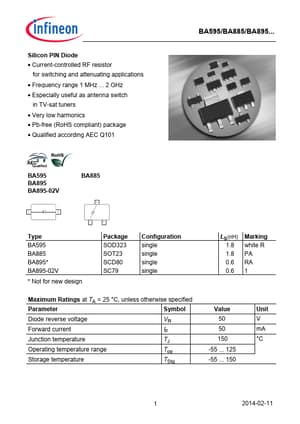

Silicon PIN Diode • Current-controlled RF resistor for switching and attenuating applications • Frequency range 1 MHz ... 2 GHz • Especially useful as antenna switch in TV-sat tuners • Very low harmonics • Pb-free (RoHS compliant) package • Qualified according AEC Q101 BA595/BA885/BA895... BA595 BA895 BA895-02V BA885 ! Type BA595 BA885 BA895* BA895-02V * Not for new design Package SOD323 SOT23 SCD80 SC79 Configuration single single single single Maximum Ratings at TA = 25 °C, unless otherwise specified Parameter Symbol Diode reverse voltage Forward current Junction temperature Operating temperature range Storage temperature VR IF TJ Top TStg LS(nH) 1.8 1.8 0.6 0.6 Marking white R PA RA 1 Value 50 50 150 -55 ... 125 -55 ...
