BA892V-04W - Band Switching Diodes

Datasheet Summary

Description

The main purpose of the BA892V-04W is the Band Switching.

Biased with a DC forward current for signals at frequencies over 100 MHz up to 3 GHz this diode behaves like a current controlled resistor and not as a diode any more.

Features

  • Low forward resistance Small reverse capacitance Lead (Pb)-free component Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC Mechanical Data e3 Case: SOT-323 Plastic case Weight: approx. 6.0 mg Packaging Codes/Options: GS08 / 3 k per 7" reel (8 mm tape), 3 k/box Parts Table Part BA892V-04W Ordering code BA892V-04W-GS08 AW4 Marking Remarks Tape and Reel Absolute Maximum Ratings Tamb = 25 °C, unless otherwise specified Parameter Reverse volt.

📥 Download Datasheet

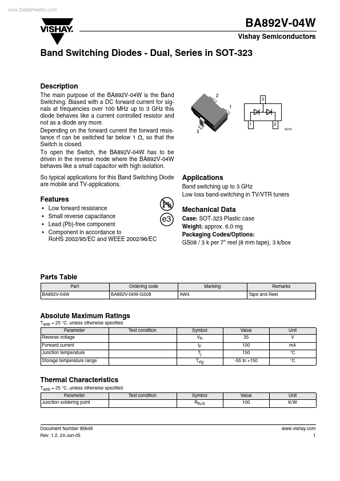

Datasheet preview – BA892V-04W

Datasheet Details

Part number BA892V-04W
Manufacturer Vishay Siliconix
File Size 173.86 KB
Description Band Switching Diodes
Datasheet download datasheet BA892V-04W Datasheet
Additional preview pages of the BA892V-04W datasheet.

📁 Similar Datasheet

  • BA892 - Band-switching diode (NXP)
  • BA892 - Silicon Rf Switching Diode Preliminary data (Siemens Semiconductor Group)
  • BA892 - Band-switching diode (Leshan Radio Company)
  • BA892 - Silicon RF Switching Diode (Infineon Technologies AG)
  • BA892-02L - Silicon RF Switching Diode (Infineon Technologies AG)
  • BA892-02V - Silicon RF Switching Diode (Infineon Technologies AG)
  • BA891 - Band-switching diode (NXP)
  • BA891 - Band-switching diode (Leshan Radio Company)
  • BA895 - Silicon PIN Diode (Infineon Technologies AG)
  • BA895-02V - Silicon PIN Diode (Infineon)
Other Datasheets by Vishay Siliconix

Full PDF Text Transcription

Click to expand full text
www.DataSheet4U.com BA892V-04W Vishay Semiconductors Band Switching Diodes - Dual, Series in SOT-323 Description The main purpose of the BA892V-04W is the Band Switching. Biased with a DC forward current for signals at frequencies over 100 MHz up to 3 GHz this diode behaves like a current controlled resistor and not as a diode any more. Depending on the forward current the forward resistance rf can be switched far below 1 Ω, so that the Switch is closed. To open the Switch, the BA892V-04W has to be driven in the reverse mode where the BA892V-04W behaves like a small capacitor with high isolation. So typical applications for this Band Switching Diode are mobile and TV-applications.
