BAR64-03W

surface mount RF PIN diode

Infineon Technologies AG

BAR64-03W General Description

This Infineon cost optimized RF PIN diode is designed for low distortion switches that require to hold off large RF voltages, and is best suited for frequencies as high as 3 GHz. Its nominal 50 μm I-region width, combined with the typical 1.55 μs carrier lifetime, result in a diode with low forward .

BAR64-03W Datasheet (427.12 KB)

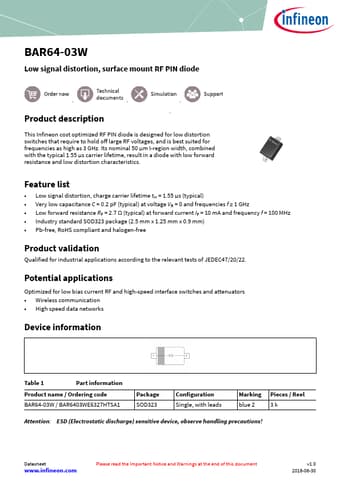

BAR64-03W Datasheet Preview — Preview of BAR64-03W PDF

Datasheet Details

Part number:

BAR64-03W

Manufacturer:

Infineon ↗ Technologies AG

File Size:

427.12 KB

Description:

Surface mount rf pin diode.
