BAR64-02W Datasheet - Siemens Semiconductor Group

BAR64-02W Silicon PIN Diode (High voltage current controlled RF resistor for RF attenuator and switches Frequency range above 1 MHz)

BAR 64-02W Silicon PIN Diode High voltage current controlled RF resistor for RF attenuator and switches Frequency range above 1 MHz Low resistance and short carrier lifetime Very low inductance For frequencies up to 3 GHz Extremely small plastic SMD package 2 1 VES05991 Type BAR 64-02W Marking Ordering Code M Q62702-A1215 Pin Configuration 1=C 2=A Package SCD-80 Maximum Ratings Parameter Diode reverse voltage Forward current Tot.

BAR64-02W_SiemensSemiconductorGroup.pdf

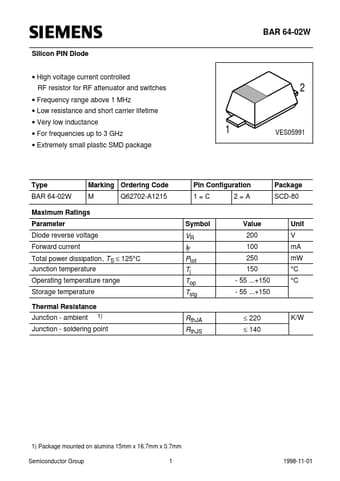

BAR64-02W Datasheet Preview — Preview of BAR64-02W PDF

Datasheet Details

Part number:

BAR64-02W

Manufacturer:

Siemens Semiconductor Group

File Size:

25.88 KB

Description:

Silicon pin diode (high voltage current controlled rf resistor for rf attenuator and switches frequency range above 1 mhz).
