BAR64-05 - Silicon PIN Diode

📥 Download Datasheet

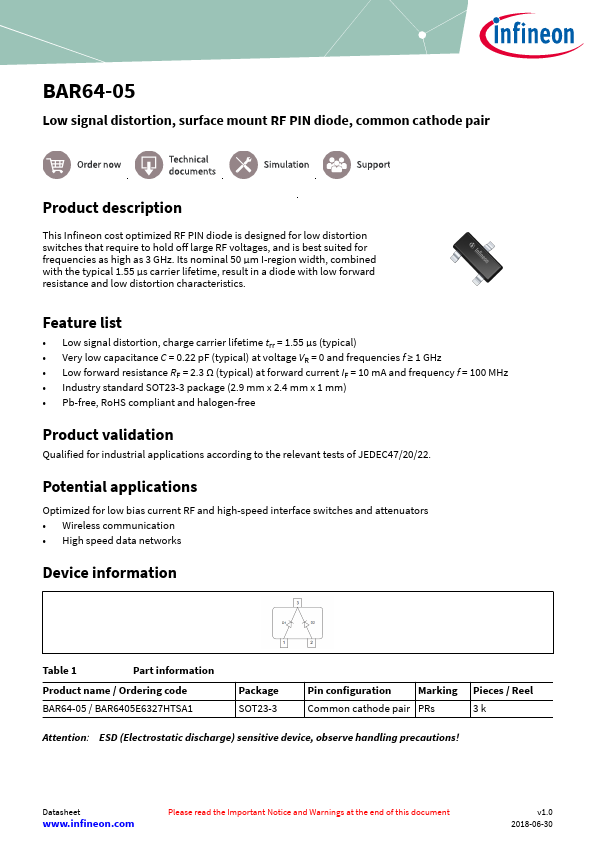

Datasheet preview – BAR64-05

Datasheet Details

Part number BAR64-05
Manufacturer Infineon Technologies AG
File Size 1.02 MB
Description Silicon PIN Diode
Datasheet download datasheet BAR64-05 Datasheet

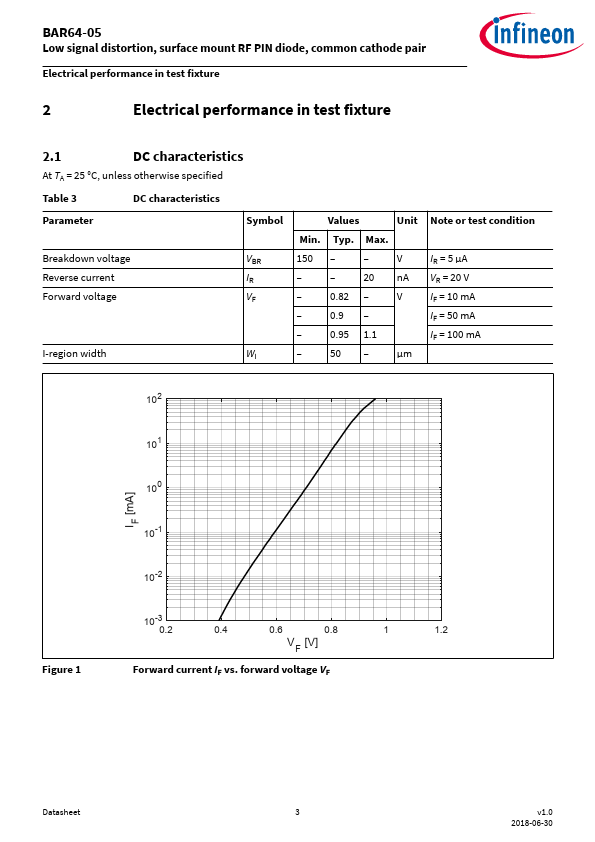

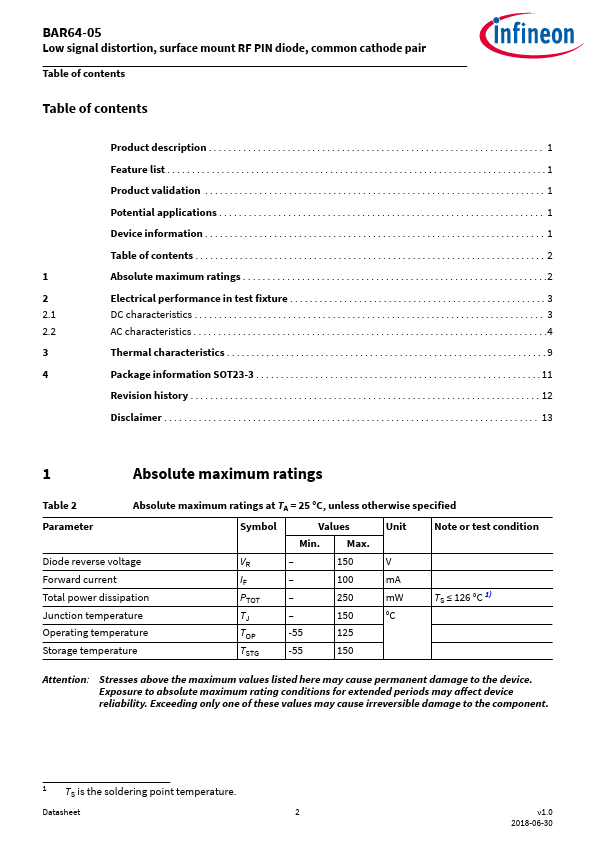

Additional preview pages of the BAR64-05 datasheet.

📁 Similar Datasheet

  • BAR64-05 - Silicon PIN Diode (High voltage current controlled RF resistor for RF attenuator and swirches Freqency range above 1 MHz) (Siemens Semiconductor Group)
  • BAR64-05 - PIN diode (Kexin)
  • BAR64-05W - Silicon PIN Diode (High voltage current controlled RF resistor for RF attenuator and switches Frequency range above 1 MHz) (Siemens Semiconductor Group)
  • BAR64-02 - Silicon PIN Diode (High voltage current controlled RF resistor for RF attenuator and switches Frequency range above 1 MHz) (Siemens Semiconductor Group)
  • BAR64-02EL - Silicon PIN Diode (Infineon)
  • BAR64-02V - surface mount RF PIN diode (Infineon)
  • BAR64-02V - GENERAL PURPOSE PIN DIODES (JCET)
  • BAR64-02V - Small Signal General Purpose PiN Diode (SeCoS)
  • BAR64-02W - Silicon PIN Diode (High voltage current controlled RF resistor for RF attenuator and switches Frequency range above 1 MHz) (Siemens Semiconductor Group)
  • BAR64-03 - Silicon PIN Diode (Siemens Semiconductor Group)
Other Datasheets by Infineon Technologies AG

Full PDF Text Transcription

Click to expand full text
Silicon PIN Diode • High voltage current controlled RF resistor for RF attenuator and switches • Frequency range above 1 MHz up to 6 GHz • Very low capacitance at zero volt reverse bias at frequencies above 1 GHz (typ. 0.17 pF) • Low forward resistance (typ. 2.1 Ω @ 10 mA) • Very low signal distortion • Pb-free (RoHS compliant) package • Qualified according AEC Q1011) BAR64...
