BAR64-05
BAR64-05 is PIN Diodes manufactured by Kexin Semiconductor.
- Part of the BAR64 comparator family.
- Part of the BAR64 comparator family.
SMD Type

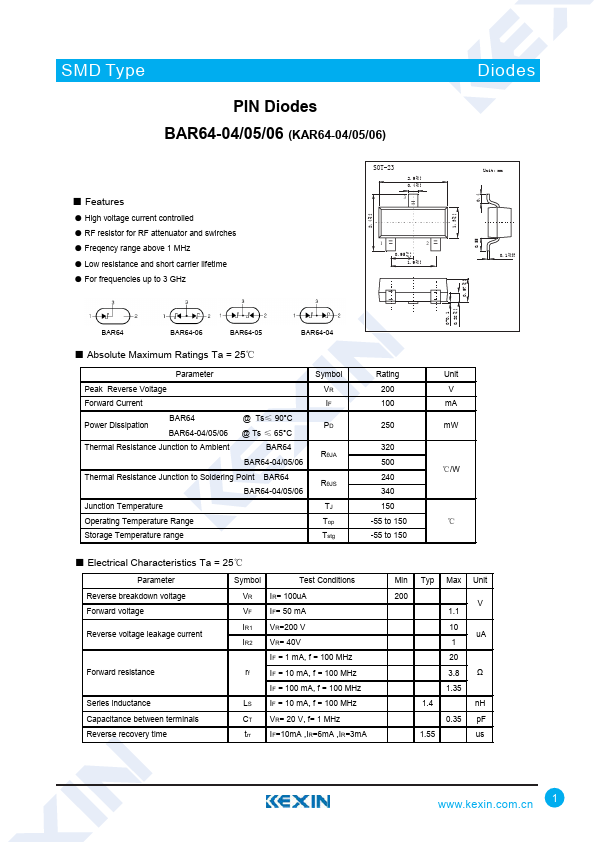

PIN Diodes BAR64-04/05/06 (KAR64-04/05/06)
- Features
- High voltage current controlled
- RF resistor for RF attenuator and swirches
- Freqency range above 1 MHz
- Low resistance and short carrier lifetime
- For frequencies up to 3 GHz
+0.1 2.4 -0.1
SOT-23
2.9 +0.1 -0.1
0.4 +0.1 -0.1
0.95 +0.1 -0.1 1.9 +0.1 -0.1
+0.1 1.3 -0.1
Diodes
Unit: mm 0.1 +0.05
-0.01
+0.1 0.97 -0.1
0-0.1 +0.1 0.38
-0.1
BAR64
BAR64-06
BAR64-04
-...
