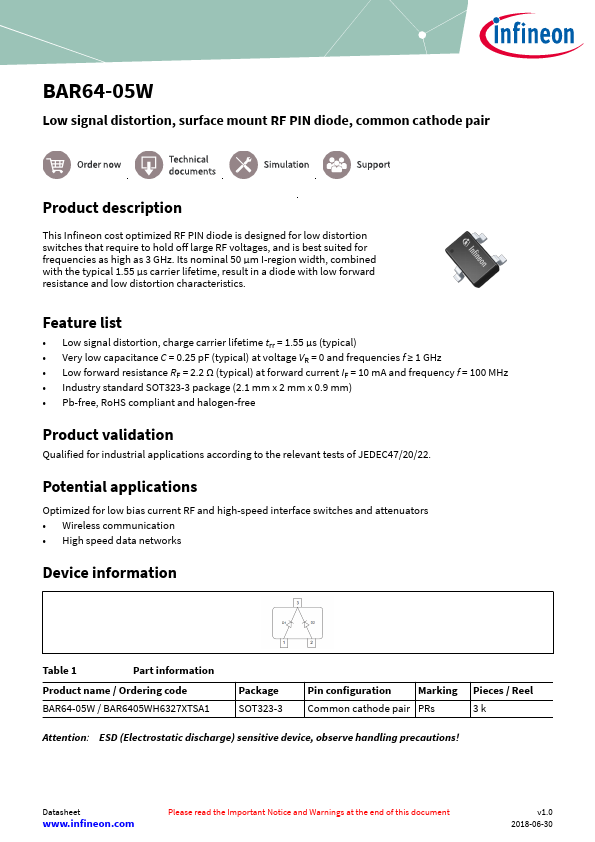

BAR64-05W datasheet by Infineon.
| Part number | BAR64-05W |
|---|---|
| Datasheet | BAR64-05W_InfineonTechnologiesAG.pdf |
| File Size | 381.35 KB |
| Manufacturer | Infineon |
| Description | surface mount RF PIN diode |
|
|
This Infineon cost optimized RF PIN diode is designed for low distortion switches that require to hold off large RF voltages, and is best suited for frequencies as high as 3 GHz. Its nominal 50 μm I-region width, bined with the typical 1.55 μs carrier lifetime, result in a diode with low forward resistance and low distortion characteristics.
View BAR64-05W datasheet index
