BAR64-05W Datasheet | Kexin Semiconductor

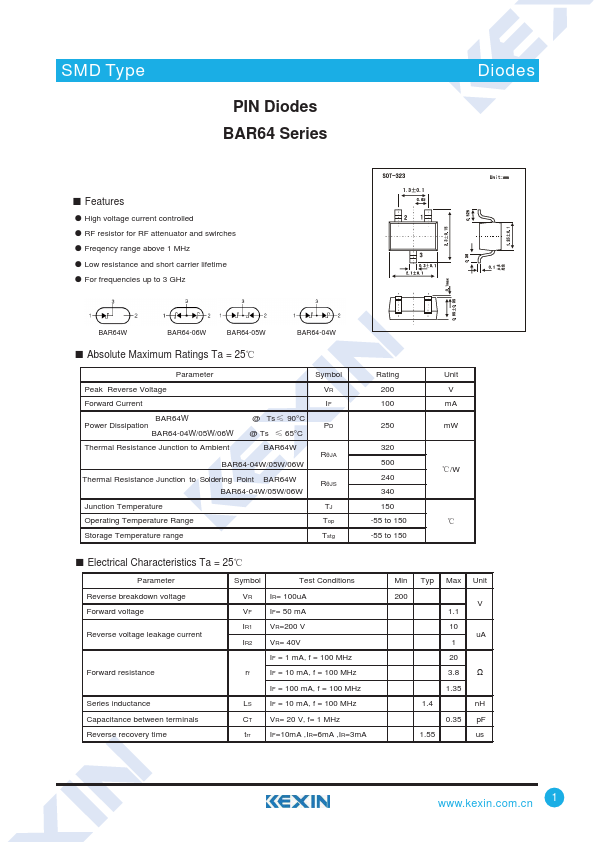

Features ƽ High voltage current controlled ƽ RF resistor for RF attenuator and swirches ƽ Freqency range above 1 MHz ƽ Low resistance and short carrier lifetime ƽ For frequencies up to 3 GHz BAR64W BAR64-06W BAR64-04W Ƶ Absolute Maximum Ratings Ta = 25ć Parameter Peak Reverse Voltage Forward Current BAR64W Power Dissipation BAR64-04W/05W/06W Thermal Resistance Junction to Ambient @ Ts İ 90°C @ Ts İ 65°C BAR64W BAR64-04W/05W/06W Thermal Resistance Junction to Soldering Point BAR64W BAR64-04W/05W/06W Junction Temperature Operating Temperature Range Storage Temperature range Symbol VR IF PD RșJA RșJS TJ Top Tstg Rating 200 100 320 500 240 340 150 -55 to 150 -55 to 150 Unit V m A m W ć/W ć Ƶ Electrical Characteristics Ta = 25ć Parameter Reverse breakdown voltage Forward voltage Reverse voltage leakage current Forward resistance Series inductance Capacitance between terminals Reverse recovery time Symbol Test Conditions VR IR= 100u A VF IF= 50 m A IR1 VR=200...
