BAW101 Datasheet - Infineon Technologies AG

BAW101 Silicon Switching Diode

Silicon Switching Diode Electrically insulated high-voltage medium-speed diodes Pb-free (RoHS compliant) package1) Qualified according AEC Q101 BAW101 BAW101 " , ! ,  Type Package Configuration BAW101 SOT143 parallel Maximum Ratings at TA = 25°C, unless otherwise specified Parameter Symbol Diode reverse voltage VR Peak reverse voltage VRM Forward current IF Peak forward current IFM Peak forward current Surge forward current, t = 1 µs IFM IF.

BAW101_InfineonTechnologiesAG.pdf

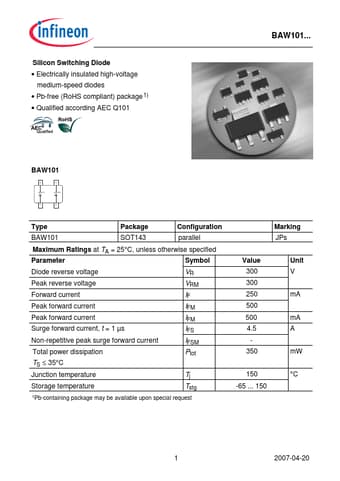

Preview of BAW101 PDF
BAW101 Datasheet Preview Page 2 BAW101 Datasheet Preview Page 3

Datasheet Details

Part number:

BAW101

Manufacturer:

Infineon ↗ Technologies AG

File Size:

57.53 KB

Description:

Silicon switching diode.
