BBY55 Datasheet - Infineon Technologies AG

BBY55 Silicon Tuning Diodes

BBY55 Silicon Tuning Diodes  Excellent linearity  High Q hyperabrupt tuning diode  Low series resistance  Designed for low tuning voltage operation for VCO's in mobile communications equipment  Very low capacitance spread BBY55-02V BBY55-02W BBY55-03W 1 2 Type BBY55-02V BBY55-02W BBY55-03W Package SC79 SCD80 SOD323 Configuration single single single LS(nH) 0.6 0.6 1.8 Marking 7 77 7 white Maximum Ratings at TA = 25°C, unless otherwise specified Parameter Diode reverse voltage Forw.

BBY55_InfineonTechnologiesAG.pdf

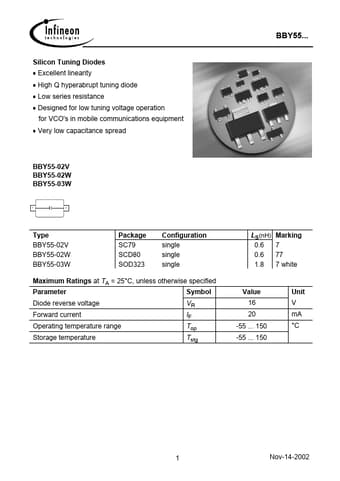

Preview of BBY55 PDF
BBY55 Datasheet Preview Page 2 BBY55 Datasheet Preview Page 3

Datasheet Details

Part number:

BBY55

Manufacturer:

Infineon ↗ Technologies AG

File Size:

411.13 KB

Description:

Silicon tuning diodes.
