BBY51 Datasheet - Siemens Group

BBY51 Silicon Tuning Diode (High Q hyperabrupt dual tuning diode Designed for low tuning voltage operation)

BBY 51 Silicon Tuning Diode High Q hyperabrupt dual tuning diode Designed for low tuning voltage operation For VCO's in mobile communications equipment Type BBY 51 Marking Ordering Code S3 Q62702-B631 Pin Configuration 1=A 2=A Package 3 = C1/C2 SOT-23 Maximum Ratings Parameter Diode reverse voltage Forward current Operating temperature range Storage temperature Symbol Values 7 20 - 55 + 150 - 55 + 150 Unit V mA °C VR IF Top Tstg Semiconductor Group 1 Jan.

BBY51_SiemensSemiconductorGroup.pdf

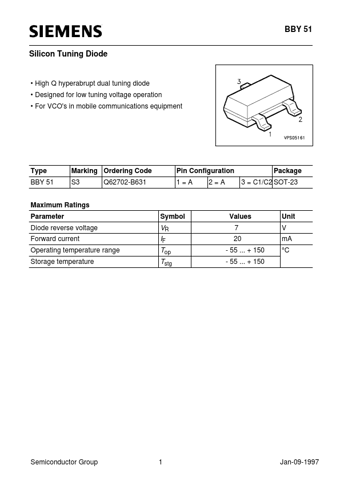

Preview of BBY51 PDF
BBY51 Datasheet Preview Page 2 BBY51 Datasheet Preview Page 3

Datasheet Details

Part number:

BBY51

Manufacturer:

Siemens Group

File Size:

23.50 KB

Description:

Silicon tuning diode (high q hyperabrupt dual tuning diode designed for low tuning voltage operation).
