BBY52 Datasheet - Siemens Group

BBY52 Silicon Tuning Diode (High Q hyperabrupt dual tuning diode Designed for low tuning voltage operation)

BBY 52 Silicon Tuning Diode High Q hyperabrupt dual tuning diode Designed for low tuning voltage operation For VCO's in mobile communications equipment Type BBY 52 Marking Ordering Code S5s Q62702-B599 Pin Configuration 1 = A1 2 = A2 Package 3 = C1/2 SOT-23 Maximum Ratings Parameter Diode reverse voltage Forward current Operating temperature range Storage temperature Symbol Values 7 20 - 55 + 150 - 55 + 150 Unit V mA °C VR IF Top Tstg Semiconductor Group .

BBY52_SiemensSemiconductorGroup.pdf

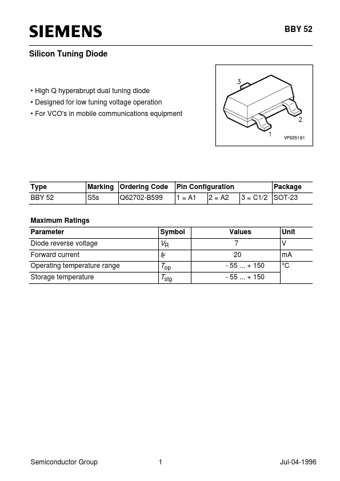

Preview of BBY52 PDF
BBY52 Datasheet Preview Page 2 BBY52 Datasheet Preview Page 3

Datasheet Details

Part number:

BBY52

Manufacturer:

Siemens Group

File Size:

31.66 KB

Description:

Silicon tuning diode (high q hyperabrupt dual tuning diode designed for low tuning voltage operation).
