BBY56-02W Silicon Tuning Diode (Excellent linearity High Q hyperabrupt tuning diode Low series inductance)

BBY 56-02W Silicon Tuning Diode Preliminary data Excellent linearity High Q hyperabrupt tuning diode Low series inductance Designed for low tuning voltage operation for VCO’s in mobile communications equipment Very low capacitance spread 2 1 VES05991 Type BBY 56-02W Marking 6 Ordering Code Q62702- Pin Configuration 1=C 2=A Package SCD-80 Maximum Ratings Parameter Diode reverse voltage Forward current Operating temperature range Storage t.

BBY56-02W Datasheet (13.86 KB)

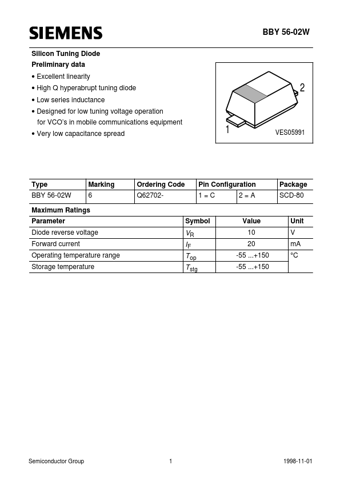

BBY56-02W Datasheet Preview — Preview of BBY56-02W PDF

Datasheet Details

Part number:

BBY56-02W

Manufacturer:

Siemens Group

File Size:

13.86 KB

Description:

Silicon tuning diode (excellent linearity high q hyperabrupt tuning diode low series inductance).
