BBY56-03W Datasheet - Siemens Group

BBY56-03W Silicon Tuning Diode (Excellent linearity High Q hyperabrupt tuning diode Low series inductance)

BBY 56-03W Silicon Tuning Diode Preliminary data Excellent linearity High Q hyperabrupt tuning diode Low series inductance Designed for low tuning voltage operation for VCO’s in mobile communications equipment Very low capacitance spread 2 1 VPS05176 Type BBY 56-03W Marking 6 cathd. red Ordering Code Q62702- Pin Configuration 1=C 2=A Package SOD-323 Maximum Ratings Parameter Diode reverse voltage Forward current Operating temperature ran.

BBY56-03W_SiemensSemiconductorGroup.pdf

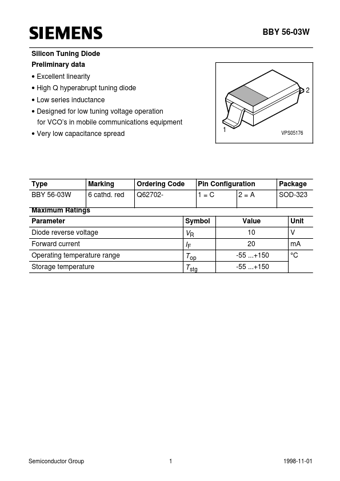

Preview of BBY56-03W PDF
BBY56-03W Datasheet Preview Page 2

Datasheet Details

Part number:

BBY56-03W

Manufacturer:

Siemens Group

File Size:

13.96 KB

Description:

Silicon tuning diode (excellent linearity high q hyperabrupt tuning diode low series inductance).
