BBY55-02W Datasheet - Siemens Group

BBY55-02W Silicon Tuning Diode (Excellent linearity High Q hyperabrupt tuning diode Low series inductance)

BBY 55-02W Silicon Tuning Diode Preliminary data Excellent linearity High Q hyperabrupt tuning diode Low series inductance Designed for low tuning voltage operation for VCO’s in mobile communications equipment Very low capacitance spread 2 1 VES05991 Type BBY 55-02W Marking Ordering Code 7 Q62702-B0913 Pin Configuration 1=C 2=A Package SCD-80 Maximum Ratings Parameter Diode reverse voltage Forward current Operating temperature range Stora.

BBY55-02W_SiemensSemiconductorGroup.pdf

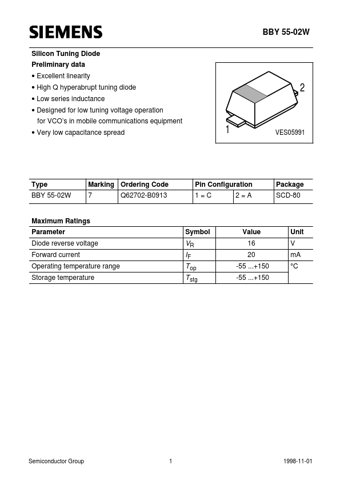

Preview of BBY55-02W PDF
BBY55-02W Datasheet Preview Page 2 BBY55-02W Datasheet Preview Page 3

Datasheet Details

Part number:

BBY55-02W

Manufacturer:

Siemens Group

File Size:

12.80 KB

Description:

Silicon tuning diode (excellent linearity high q hyperabrupt tuning diode low series inductance).
