BTS100

Smart Highside Power Switch

BTS100 Features

* q q q q P channel Enhancement mode Temperature sensor with thyristor characteristic The drain pin is electrically shorted to the tab Pin 1 G 2 D 3 S Type BTS 100 VDS

* 50 V ID

* 8A RDS(on) 0.3 Ω Package TO-220AB Ordering Code C67078-A5007-A2 Maximum Ratings Parameter Drain

BTS100 General Description

and charts stated herein. Infineon Technologies is an approved CECC manufacturer. Information For further information on technology, delivery terms and conditions and prices please contact your nearest Infineon Technologies Office in Germany or our Infineon Technologies Representatives worldwide (s.

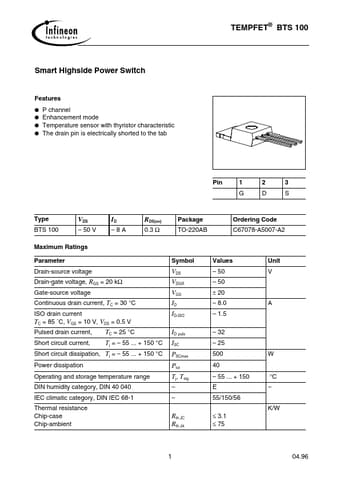

BTS100 Datasheet (436.70 KB)

Preview of BTS100 PDF

Datasheet Details

Part number:

BTS100

Manufacturer:

Infineon ↗ Technologies AG

File Size:

436.70 KB

Description:

Smart highside power switch.
