BTS3118D Datasheet - Infineon Technologies AG

Smart Lowside Power Switch

BTS3118D Features

* Logic Level Input

* Input Protection (ESD)

* Thermal shutdown

* Green product (RoHS compliant)

* Overload protection

* Short circuit protection

* Overvoltage protection

* Current limitation

* Analog driving possible Product Summary Drain source voltage On-s

BTS3118D General Description

N channel vertical power FET in Smart SIPMOS technology. Fully protected by embedded protection functions. Vbb HITFET In Pin 1 Gate-Driving Unit Current Limitation OvervoltageProtection ESD Overload Protection Overtemperature Protection Short circuit Protection Drain Pin 2 and 4 (TAB) So.

BTS3118D Datasheet (313.28 KB)

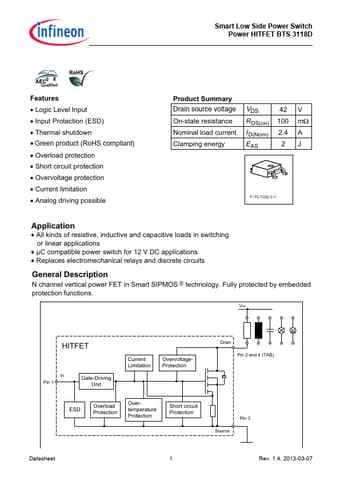

Preview of BTS3118D PDF

Datasheet Details

Part number:

BTS3118D

Manufacturer:

Infineon ↗ Technologies AG

File Size:

313.28 KB

Description:

Smart lowside power switch.
