BTS3134D Datasheet - Infineon Technologies

BTS3134D Smart Low Side Power Switch

N channel vertical power FET in Smart SIPMOS technology. Fully protected by embedded protection functions. Vbb HITFET In Pin 1 Gate-Driving Unit Current Limitation OvervoltageProtection ESD Overload Protection Overtemperature Protection Short circuit Protection Drain Pin 2 and 4 (TAB) So.

BTS3134D Features

* Logic Level Input

* Input Protection (ESD)

* Thermal shutdown

* Green product (RoHS compliant)

* Overload protection

* Short circuit protection

* Overvoltage protection

* Current limitation

* Analog driving possible Product Summary Drain source voltage VDS

BTS3134D-InfineonTechnologies.pdf

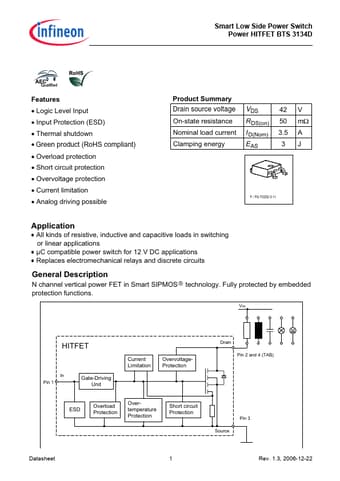

Preview of BTS3134D PDF
BTS3134D Datasheet Preview Page 2 BTS3134D Datasheet Preview Page 3

Datasheet Details

Part number:

BTS3134D

Manufacturer:

Infineon ↗ Technologies

File Size:

223.75 KB

Description:

Smart low side power switch.
