BTS3028SDR Smart Low Side Power Switch

The BTS3028SDR is a single channel low-side MOSFET power switch in PG-TO252-3-11 package providing embedded protective functions. The device is monolithically integrated with a N channel vertical power FET and embedded protection functions. The BTS3028SDR is automotive qualified and can be used in 1.

HITFET Smart Low Side Power Switch HITFET - BTS3028SDR 28 mOhm single channel smart low side power switch for 12V & 24V Application Datasheet Rev. 1.0, 2009-12-06 Automotive Power HITFET - BTS3028SDR Smart low side power switch 1 2 2.1 3 3.1 3.2 4 4.1 4.2 4.3 4.3.1 5 5.1 5.1.1 5.2 5.2.1 5.2.2 5.3 6 6.1 6.2 6.3 6.4 7 8 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Block Diagram . . . . . .

BTS3028SDR Features

* Short circuit and over load protection

* Thermal shutdown with restart behavior

* ESD protection

* Over voltage protection

* Logic level input suitable for 5V and 3.3V

* Analog driving possible

* 12V and 24V usability

* Green Product

BTS3028SDR-InfineonTechnologies.pdf

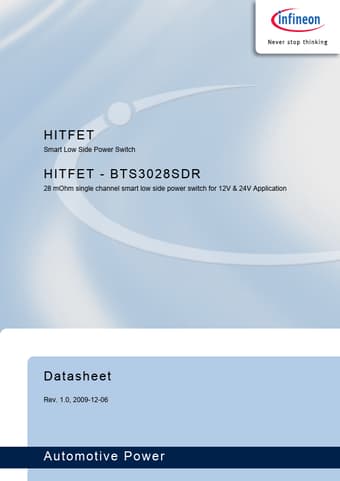

BTS3028SDR Datasheet Preview — Preview of BTS3028SDR PDF

Datasheet Details

Part number:

BTS3028SDR

Manufacturer:

Infineon ↗ Technologies

File Size:

1.24 MB

Description:

Smart low side power switch.
