BTS3035EJ - Smart Low-Side Power Switch

Datasheet Summary

Description

The BTS3035EJ is a 35 mΩ single channel Smart Low-Side Power Switch with in a PG-TDSO8-31 package providing embedded protective functions.

The power transistor is built by an N-channel vertical power MOSFET.

The device is monolithically integrated.

Features

  • Single channel device.
  • Very low output leakage current in OFF state.
  • Electrostatic discharge protection (ESD).
  • Embedded protection functions (see below).
  • ELV compliant package.
  • Green Product (RoHS compliant).
  • AEC Qualified.

📥 Download Datasheet

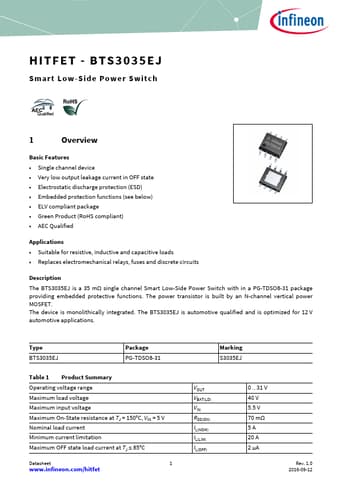

Datasheet preview – BTS3035EJ

Datasheet Details

Part number BTS3035EJ
Manufacturer Infineon
File Size 1.32 MB
Description Smart Low-Side Power Switch
Datasheet download datasheet BTS3035EJ Datasheet
Additional preview pages of the BTS3035EJ datasheet.

📁 Similar Datasheet

  • BTS3028SDL - Smart Low Side Power Switch (Infineon Technologies)
  • BTS3028SDR - Smart Low Side Power Switch (Infineon Technologies)
  • BTS3046SDL - Smart Low Side Power Switch (Infineon Technologies)
  • BTS3046SDR - Smart Low Side Power Switch (Infineon Technologies)
  • BTS307 - Smart Highside Power Switch (Siemens Semiconductor Group)
  • BTS307 - Smart High-Side Power Switch (Infineon Technologies AG)
  • BTS308 - Smart Highside Power Switch (Siemens Semiconductor Group)
  • BTS308 - Smart Highside Power Switch (Infineon Technologies AG)
  • BTS3104SDL - Smart Low Side Power Switch (Infineon Technologies)
  • BTS3104SDR - Smart Low Side Power Switch (Infineon Technologies)
Other Datasheets by Infineon

Full PDF Text Transcription

Click to expand full text
HITFET - BTS3035EJ Smart Low-Side Power Switch 1 Overview Basic Features • Single channel device • Very low output leakage current in OFF state • Electrostatic discharge protection (ESD) • Embedded protection functions (see below) • ELV compliant package • Green Product (RoHS compliant) • AEC Qualified Applications • Suitable for resistive, inductive and capacitive loads • Replaces electromechanical relays, fuses and discrete circuits Description The BTS3035EJ is a 35 mΩ single channel Smart Low-Side Power Switch with in a PG-TDSO8-31 package providing embedded protective functions. The power transistor is built by an N-channel vertical power MOSFET. The device is monolithically integrated. The BTS3035EJ is automotive qualified and is optimized for 12 V automotive applications.
