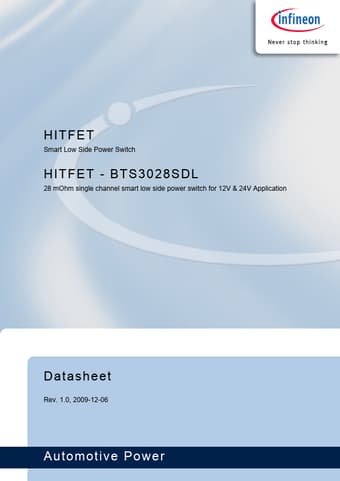

BTS3028SDL Datasheet, Switch, Infineon Technologies

BTS3028SDL Features

• Switch
• Short circuit and over load protection
• Thermal shutdown with latch behavior
• ESD protection
• Over voltage protection
• Logic level input su

PDF File Details

Part number:

BTS3028SDL

Manufacturer:

Infineon ↗ Technologies

File Size:

1.24MB

Download:

📄 Datasheet

Description:

Smart low side power switch. The BTS3028SDL is a single channel low-side MOSFET power switch in PG-TO252-3-11 package providing embedded protective functions. The

BTS3028SDL Application

• Applications Table 1 Product Summary Drain voltage1) Maximum Input Voltage Maximum On-State resistance at 150°C at 5V input voltage Typical On-Sta
