IPW90R500C3, CoolMOS Power Transistor

IPW90R500C3 CoolMOS™ Power Transistor .

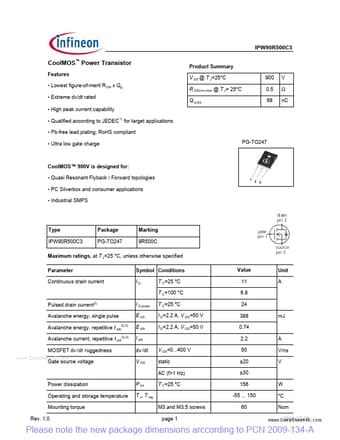

datasheet Preview Page 1 from Datasheet4u.com

IPW90R500C3_InfineonTechnologiesAG.pdf

IPW90R500C3 Datasheet Preview — Preview of IPW90R500C3 PDF

Datasheet Details

Part number:

IPW90R500C3

Manufacturer:

Infineon ↗ Technologies AG

File Size:

594.75 KB

Description:

CoolMOS Power Transistor

Features

* Lowest figure-of-merit R ON x Qg
* Extreme dv/dt rated
* High peak current capability

Applications

* Pb-free lead plating; RoHS compliant
* Ultra low gate charge Product Summary V DS @ T J=25°C R DS(on),max @ T J= 25°C Q g,typ 900 0.5 68 V Ω nC PG-TO247 CoolMOS™ 900V is designed for:
* Quasi Resonant Flyback / Forward topologies
* PC Silverbox and consumer appli
