SEMD2 NPN/PNP Silicon Digital Transistor Array Preliminary data

SEMD2 NPN/PNP Silicon Digital Transistor Array Preliminary data Switching circuit, inverter, interface circuit, driver circuit Two (galvanic) internal isolated NPN/PNP Transistors in one package Built in bias resistor (R1=22kΩ, R2 =22kΩ) Tape loading orientation Top View 3 2 1 4 5 3 6 1 2 Marking on SOT666 package (for example W R) corresponds to pin 1 of device Position in tape: pin 1 same of feed hole side C1 6 B2 5 E2 4 R2 R1 TR1 R2 1 2 B1 3 C2 EHA07176 TR.

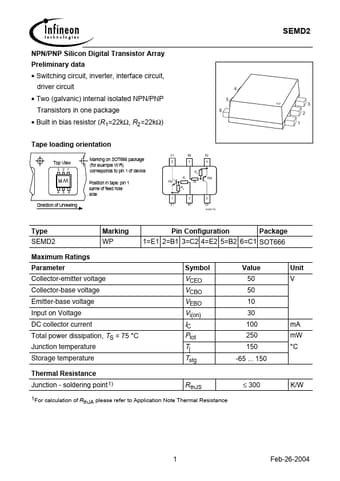

SEMD2 Datasheet (156.42 KB)

SEMD2 Datasheet Preview — Preview of SEMD2 PDF

Datasheet Details

Part number:

SEMD2

Manufacturer:

Infineon ↗ Technologies AG

File Size:

156.42 KB

Description:

Npn/pnp silicon digital transistor array preliminary data.
