TLE4966L - High Precision Hall-Effect Switch

Infineon Technologies AG

📥 Download Datasheet

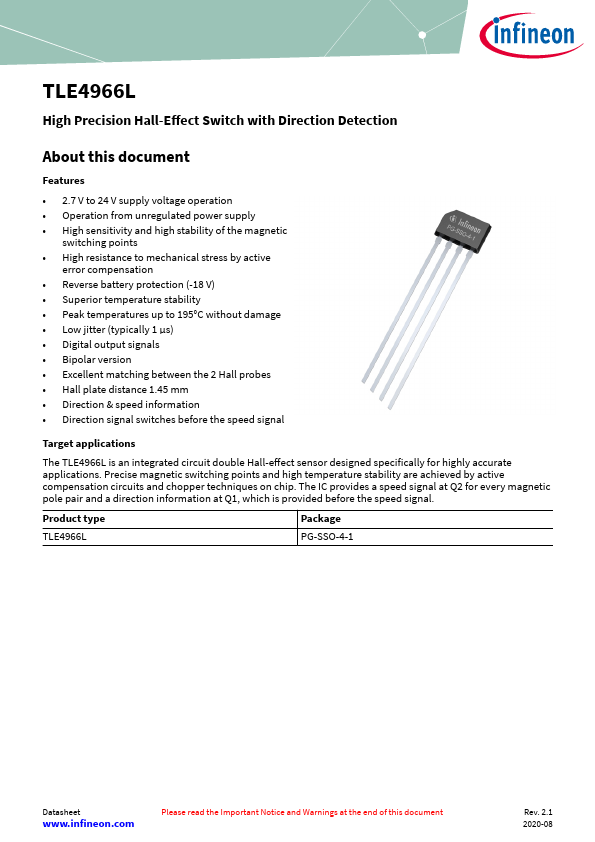

TLE4966L Datasheet Preview — Preview of TLE4966L PDF

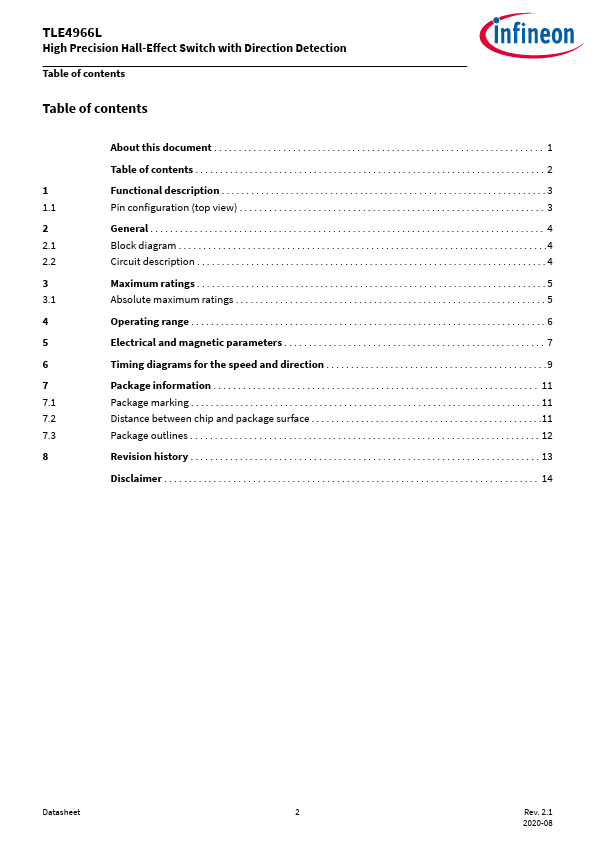

datasheet Preview Page 2

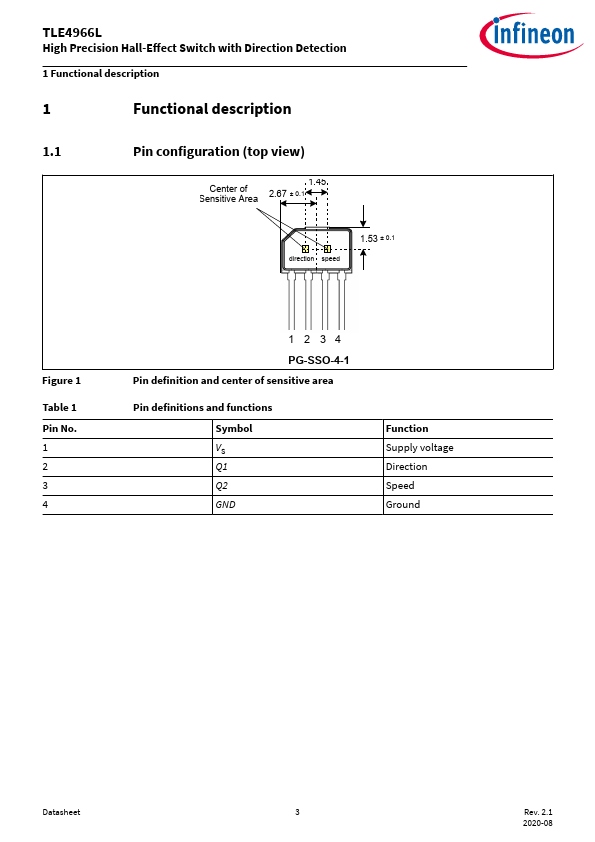

datasheet Preview Page 3

Datasheet Details

Part number: TLE4966L
Manufacturer: Infineon ↗ Technologies AG
File Size: 436.93 KB
Datasheet: TLE4966L_InfineonTechnologiesAG.pdf
Description: High Precision Hall-Effect Switch

TLE4966L Product details

Description

. . 4 2.1 Block diagram

Features

2.7 V to 24 V supply voltage operation.
Operation from unregulated power supply.
High sensitivity and high stability of the magnetic switching points.
High resistance to mechanical stress by active error compensation.
Reverse battery protection (-18 V).
Superior temperature stability.
Peak temperatures up to 195°C without damage.
Low jitter (typically 1 µs).
Digital output signals.
Bipolar version.
