TLE49601 magnetic switch

📥 Download Datasheet Datasheet Preview Page 1

Description

Infineon-TLE4960x-DS-v01_00-EN Datasheet XENSIV™ magnetic switch family with extended diagnostic .
This sensor measures the magnetic field orthogonal to the PCB direction in Z direction.

📥 Download Datasheet

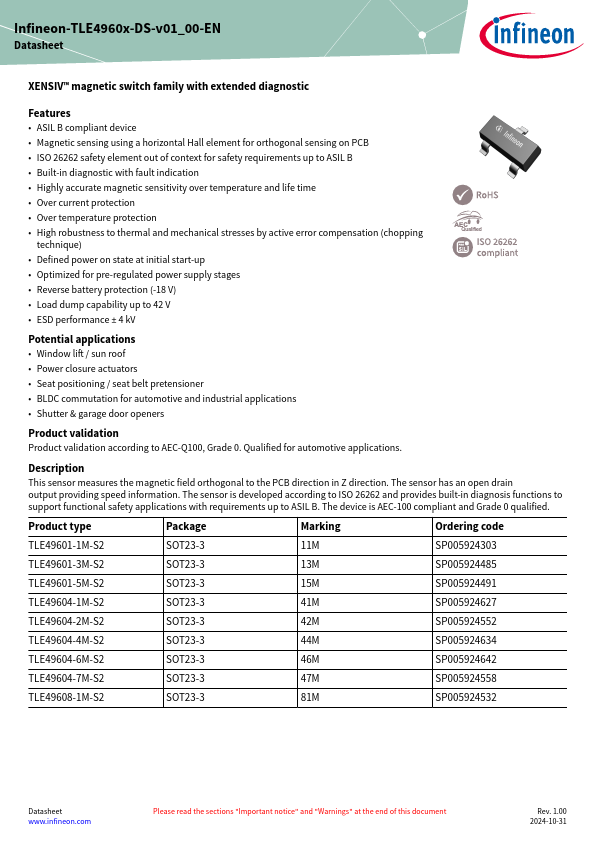

Preview of TLE49601 PDF

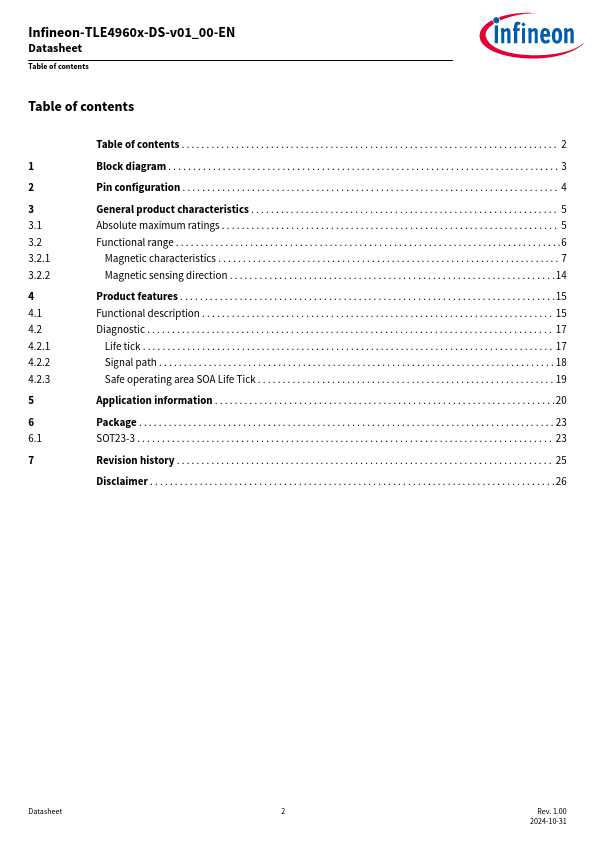

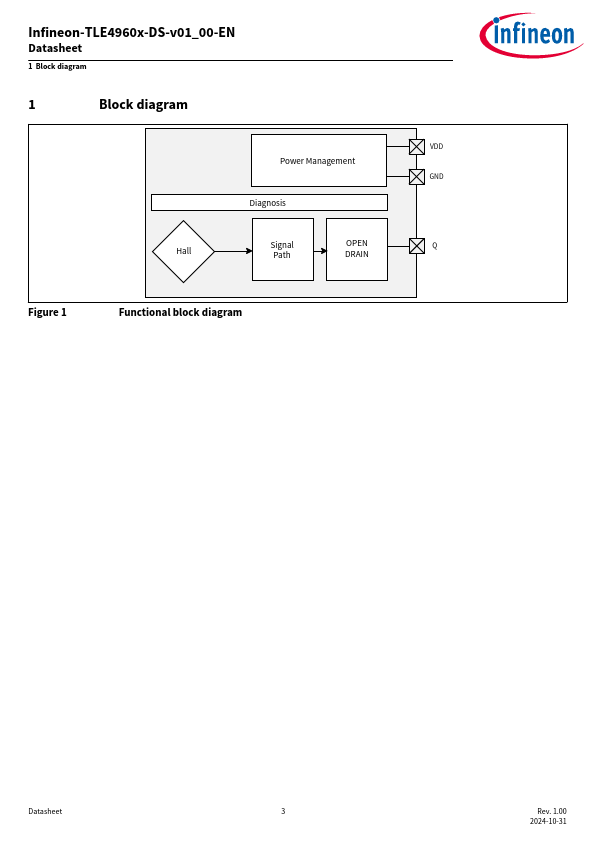

datasheet Preview Page 2 datasheet Preview Page 3

Features

* ASIL B compliant device
* Magnetic sensing using a horizontal Hall element for orthogonal sensing on PCB
* ISO 26262 safety element out of context for safety requirements up to ASIL B
* Built-in diagnostic with fault indication
* Highly accurate magnetic sen

Applications

* Window lift / sun roof
* Power closure actuators
* Seat positioning / seat belt pretensioner
* BLDC commutation for automotive and industrial applications
* Shutter & garage door openers Product validation Product validation according to AEC-Q100, Grade 0.
