TLE49604, TLE49601 Datasheet - Infineon

TLE49604 magnetic switch

This sensor measures the magnetic field orthogonal to the PCB direction in Z direction. The sensor has an open drain output providing speed information. The sensor is developed according to ISO 26262 and provides built-in diagnosis functions to support functional safety applications with requirement.

TLE49604 Features

* ASIL B compliant device

* Magnetic sensing using a horizontal Hall element for orthogonal sensing on PCB

* ISO 26262 safety element out of context for safety requirements up to ASIL B

* Built-in diagnostic with fault indication

* Highly accurate magnetic sen

TLE49601-Infineon.pdf

This datasheet PDF includes multiple part numbers: TLE49604, TLE49601. Please refer to the document for exact specifications by model.

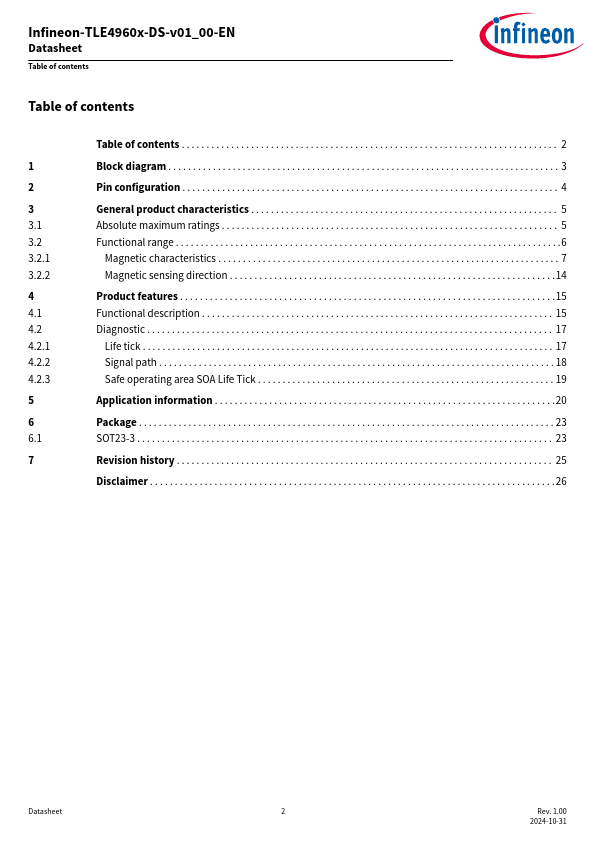

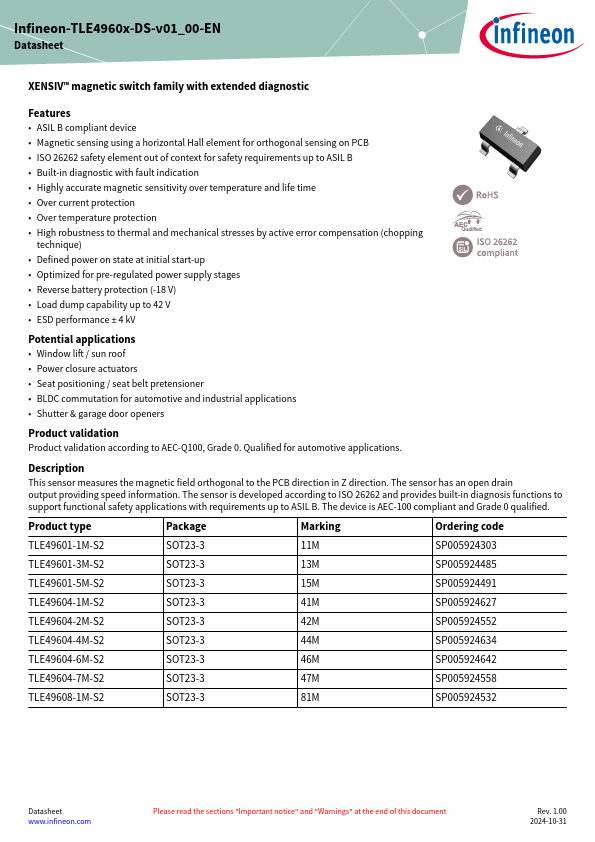

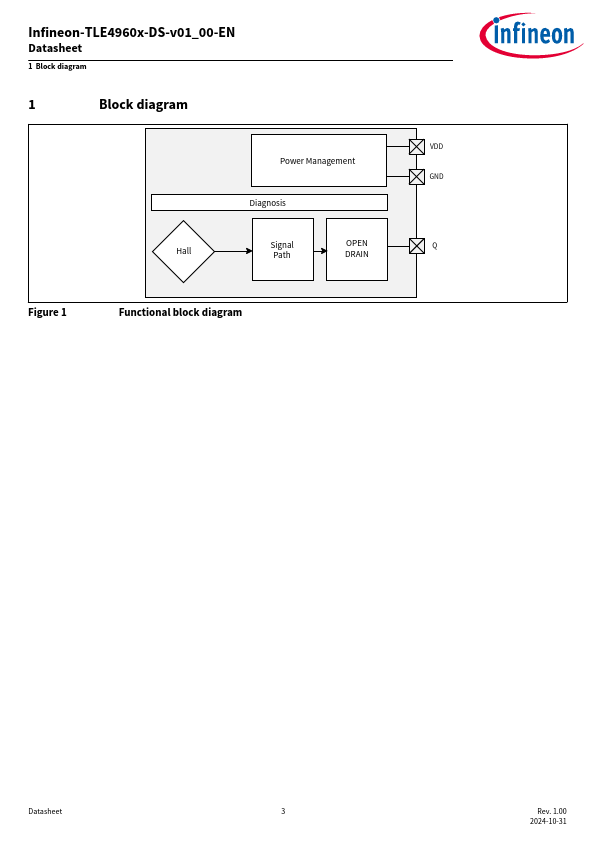

TLE49604 Datasheet Preview Page 2 TLE49604 Datasheet Preview Page 3
