BSS606N - Small-Signal-Transistor

Datasheet Summary

Features

  • N-channel.
  • Enhancement mode.
  • Logic level (4.5V rated).
  • Avalanche rated.
  • Qualified according to AEC Q101.
  • 100%lead-free; Halogen-free; RoHS compliant BSS606N Product Summary VDS RDS(on),max ID VGS=10 V VGS=4.5 V 60 V 60 mW 90 3.2 A PG-SOT-89 4 1 2 3 Type BSS606N Package Tape and Reel Information PG-SOT-89 H6327: 3000 pcs/ reel Marking KE Halogen-free Yes Maximum ratings, at T j=25 °C, unless otherwise specified Parameter Symbo.

📥 Download Datasheet

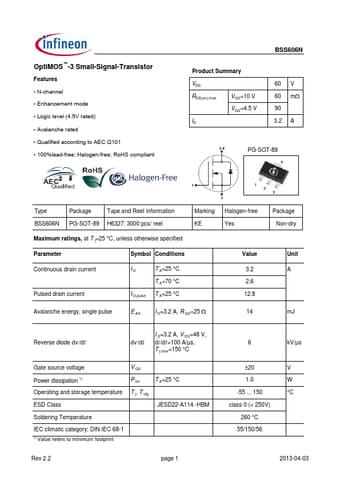

Datasheet preview – BSS606N

Datasheet Details

Part number BSS606N
Manufacturer Infineon Technologies
File Size 391.33 KB
Description Small-Signal-Transistor
Datasheet download datasheet BSS606N Datasheet
Additional preview pages of the BSS606N datasheet.

📁 Similar Datasheet

  • BSS60 - PNP Transistoor (Philips)
  • BSS60 - DARLINGTON TRANSISTOR (Motorola)
  • BSS60A - (BSS60A - BSS62A) SILICON PLANAR EPITAXIAL TRANSISTORS (Comset Semiconductors)
  • BSS61 - PNP transistors (NXP)
  • BSS61 - PNP Transistoor (Philips)
  • BSS61 - DARLINGTON TRANSISTOR (Motorola)
  • BSS61A - (BSS60A - BSS62A) SILICON PLANAR EPITAXIAL TRANSISTORS (Comset Semiconductors)
  • BSS62 - PNP transistors (NXP)
  • BSS62 - PNP Transistoor (Philips)
  • BSS62 - DARLINGTON TRANSISTOR (Motorola)
Other Datasheets by Infineon Technologies

Full PDF Text Transcription

Click to expand full text
OptiMOS™-3 Small-Signal-Transistor Features • N-channel • Enhancement mode • Logic level (4.5V rated) • Avalanche rated • Qualified according to AEC Q101 • 100%lead-free; Halogen-free; RoHS compliant BSS606N Product Summary VDS RDS(on),max ID VGS=10 V VGS=4.5 V 60 V 60 mW 90 3.2 A PG-SOT-89 4 1 2 3 Type BSS606N Package Tape and Reel Information PG-SOT-89 H6327: 3000 pcs/ reel Marking KE Halogen-free Yes Maximum ratings, at T j=25 °C, unless otherwise specified Parameter Symbol Conditions Value Continuous drain current Pulsed drain current ID I D,pulse T A=25 °C T A=70 °C T A=25 °C 3.2 2.6 12.8 Avalanche energy, single pulse E AS I D=3.2 A, R GS=25 W 14 Package Non-dry Unit A mJ Reverse diode dv /dt dv /dt I D=3.
