BSS62 - PNP transistors

Datasheet Summary

Description

DESCRIPTION PNP Darlington transistor in a TO-39 metal package.

NPN complements: BSS51 and BSS52.

Fig.1 Simplified outline (TO-39) and symbol.

Features

  • High current (max. 1 A).
  • Low voltage (max. 80 V).
  • Integrated diode and resistor.

📥 Download Datasheet

Datasheet preview – BSS62

Datasheet Details

Part number BSS62
Manufacturer NXP
File Size 52.13 KB
Description PNP transistors
Datasheet download datasheet BSS62 Datasheet
Additional preview pages of the BSS62 datasheet.

📁 Similar Datasheet

  • BSS62 - PNP Transistoor (Philips)
  • BSS62 - DARLINGTON TRANSISTOR (Motorola)
  • BSS62A - (BSS60A - BSS62A) SILICON PLANAR EPITAXIAL TRANSISTORS (Comset Semiconductors)
  • BSS60 - PNP Transistoor (Philips)
  • BSS60 - DARLINGTON TRANSISTOR (Motorola)
  • BSS606N - Small-Signal-Transistor (Infineon Technologies)
  • BSS60A - (BSS60A - BSS62A) SILICON PLANAR EPITAXIAL TRANSISTORS (Comset Semiconductors)
  • BSS61 - PNP Transistoor (Philips)
  • BSS61 - DARLINGTON TRANSISTOR (Motorola)
  • BSS61A - (BSS60A - BSS62A) SILICON PLANAR EPITAXIAL TRANSISTORS (Comset Semiconductors)
Other Datasheets by NXP
  • BSS61 - PNP transistors
  • BSS63 - PNP transistor
  • BSS64 - NPN high voltage transistor
  • BSS110 - P-channel enhancement mode vertical D-MOS transistor
  • BSS123 - N-channel transistor Logic level FET
  • BSS138AKA - single N-channel MOSFET
  • BSS138BK - N-channel MOSFET
  • BSS138BKW - 320mA N-channel Trench MOSFET

Full PDF Text Transcription

Click to expand full text

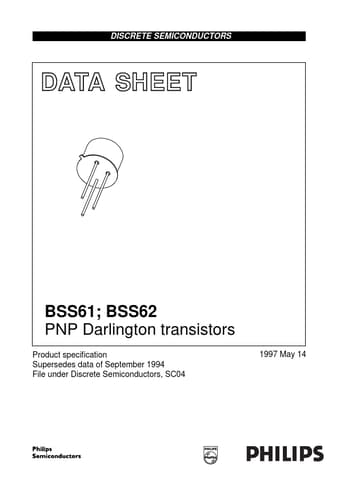

DISCRETE SEMICONDUCTORS DATA SHEET M3D111 BSS61; BSS62 PNP Darlington transistors Product specification Supersedes data of September 1994 File under Discrete Semiconductors, SC04 1997 May 14 Philips Semiconductors Product specification PNP Darlington transistors FEATURES • High current (max. 1 A) • Low voltage (max. 80 V) • Integrated diode and resistor. APPLICATIONS • Industrial high gain amplification. handbook, halfpage 1 BSS61; BSS62 PINNING PIN 1 2 3 emitter base collector, connected to case DESCRIPTION 2 3 2 DESCRIPTION PNP Darlington transistor in a TO-39 metal package. NPN complements: BSS51 and BSS52. 3 MAM310 1 Fig.1 Simplified outline (TO-39) and symbol.
