BSS81 Datasheet - Infineon Technologies

BSS81 NPN Transistors

BSS79, BSS81 NPN Silicon Switching Transistors  High DC current gain: 0.1mA to 500 mA  Low collector-emitter saturation voltage  Complementary types: BSS80, BSS82 (PNP) 3 2 1 VPS05161 Type BSS79B BSS79C BSS81B BSS81C Marking CEs CFs CDs CGs 1=B 1=B 1=B 1=B Pin Configuration 2=E 2=E 2=E 2=E 3=C 3=C 3=C 3=C Package SOT23 SOT23 SOT23 SOT23 Maximum Ratings Parameter Collector-emitter voltage Collector-base voltage Emitter-base voltage DC collector current Peak collector current Base curren.

BSS81_InfineonTechnologies.pdf

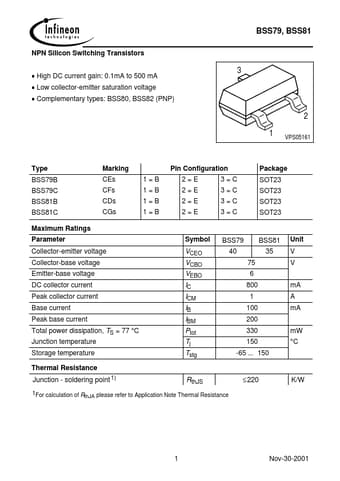

Preview of BSS81 PDF
BSS81 Datasheet Preview Page 2 BSS81 Datasheet Preview Page 3

Datasheet Details

Part number:

BSS81

Manufacturer:

Infineon ↗ Technologies

File Size:

55.19 KB

Description:

Npn transistors.
