IKW50N65H5 - High speed 5 IGBT

Infineon Technologies

📥 Download Datasheet

IKW50N65H5 Datasheet Preview — Preview of IKW50N65H5 PDF

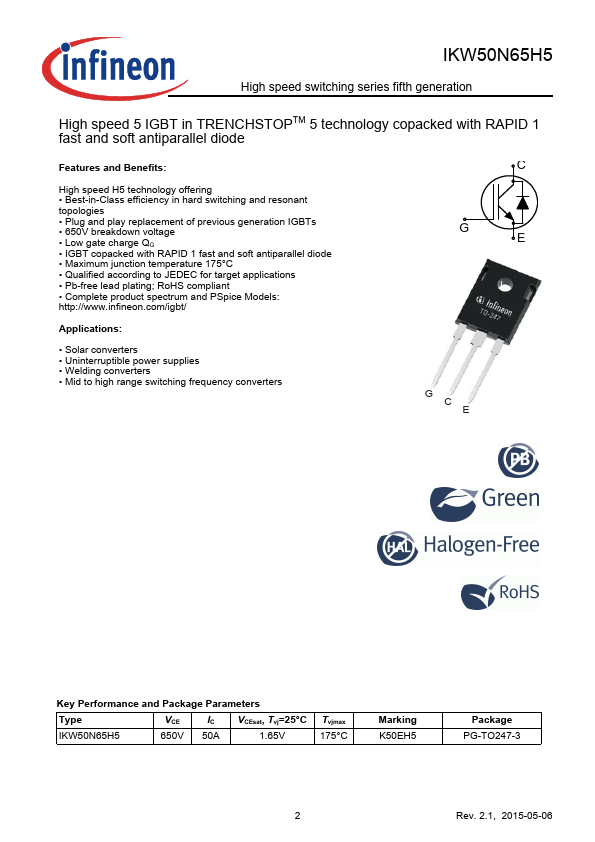

datasheet Preview Page 2

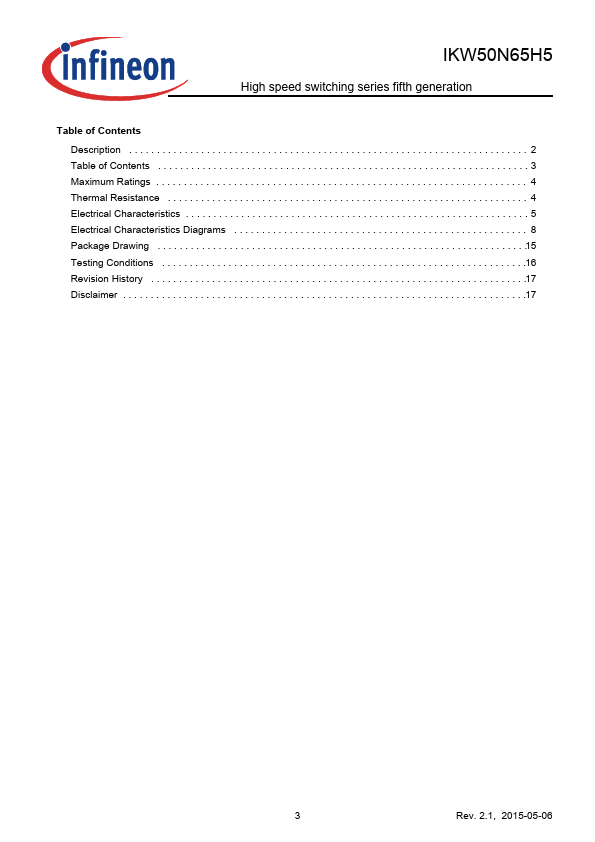

datasheet Preview Page 3

Datasheet Details

Part number	IKW50N65H5
Manufacturer	Infineon ↗ Technologies
File Size	2.13 MB
Description	High speed 5 IGBT
Datasheet	IKW50N65H5-InfineonTechnologies.pdf

IKW50N65H5 Product details

Description

. . .

Features

C High speed H5 technology offering.
Best-in-Class efficiency in hard switching and resonant topologies.
Plug and play replacement of previous generation IGBTs.
650V breakdown voltage.
Low gate charge QG.
IGBT copacked with RAPID 1 fast and soft antiparallel diode.
Maximum junction temperature 175°C.
Qualified according to JEDEC for target.
