IKW50N65SS5 S5 IGBT

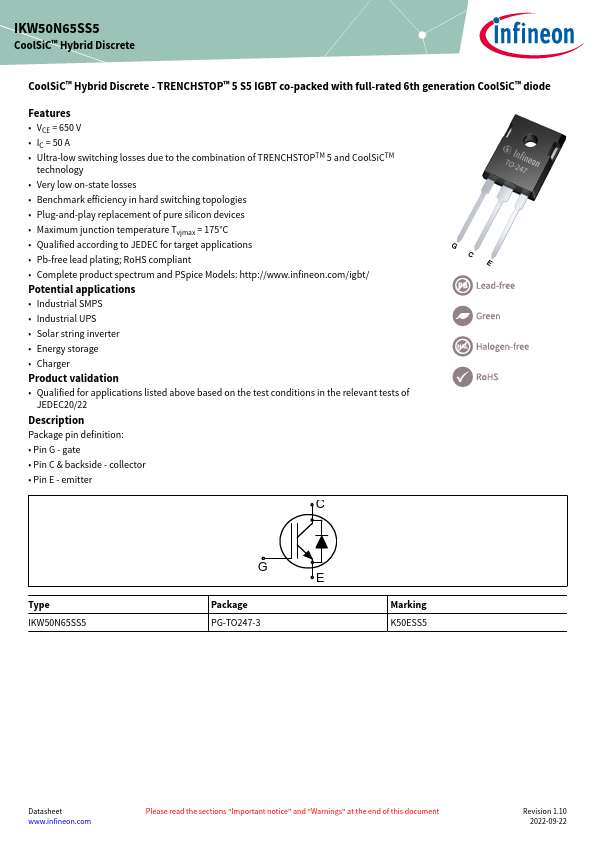

📥 Download Datasheet Datasheet Preview Page 1

Description

IKW50N65SS5 CoolSiC™ Hybrid Discrete CoolSiC™ Hybrid Discrete - TRENCHSTOP™ 5 S5 IGBT co-packed with full-rated 6th generation CoolSiC™ diode Featur.
Package pin definition:. Pin G - gate. Pin C & backside - collector. Pin E - emitter TO-247. 3Pin 2021-10-27 re.

📥 Download Datasheet

Preview of IKW50N65SS5 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Features

* VCE = 650 V
* IC = 50 A
* Ultra-low switching losses due to the combination of TRENCHSTOPTM 5 and CoolSiCTM technology
* Very low on-state losses
* Benchmark efficiency in hard switching topologies
* Plug-and-play replacement of pure silicon devices

Applications

* Pb-free lead plating; RoHS compliant
* Complete product spectrum and PSpice Models: http://www. infineon. com/igbt/ Potential applications
* Industrial SMPS
* Industrial UPS
* Solar string inverter
* Energy storage
* Charger Product validation
