IPB60R099CPA, Power Transistor

IPB60R099CPA CoolMOS® Power Transistor Product Summary V DS R DS(on),max Q g,typ 600 0.105 60 V Ω nC .

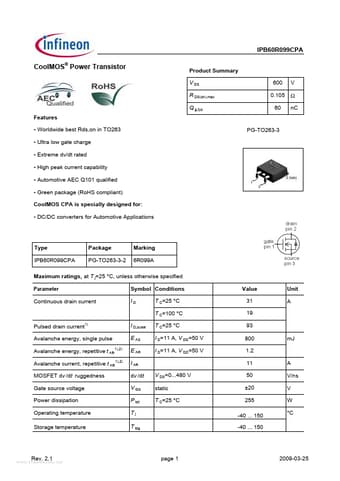

datasheet Preview Page 1 from Datasheet4u.com

IPB60R099CPA_InfineonTechnologies.pdf

IPB60R099CPA Datasheet Preview — Preview of IPB60R099CPA PDF

Datasheet Details

Part number:

IPB60R099CPA

Manufacturer:

Infineon ↗ Technologies

File Size:

374.03 KB

Description:

Power Transistor

Features

* Worldwide best Rds,on in TO263
* Ultra low gate charge
* Extreme dv/dt rated
* High peak current capability
* Automotive AEC Q101 qualified
* Green package (RoHS compliant) CoolMOS CPA is specially designed for:
* DC/DC converters for Automot

Applications

* PG-TO263-3 Type IPB60R099CPA Package PG-TO263-3-2 Marking 6R099A Maximum ratings, at T j=25 °C, unless otherwise specified Parameter Symbol Conditions ID T C=25 °C T C=100 °C Value 31 19 93 800 1.2 11 Unit A Continuous drain current Pulsed drain current1) Avalanche energy, single pulse Aval
