IPB60R105CFD7 Datasheet - Infineon

IPB60R105CFD7, 600V MOSFET

IPB60R105CFD7 MOSFET 600V CoolMOSª CFD7 Power Transistor CoolMOS™ is a revolutionary technology for high voltage power MOSFETs, designed according to.

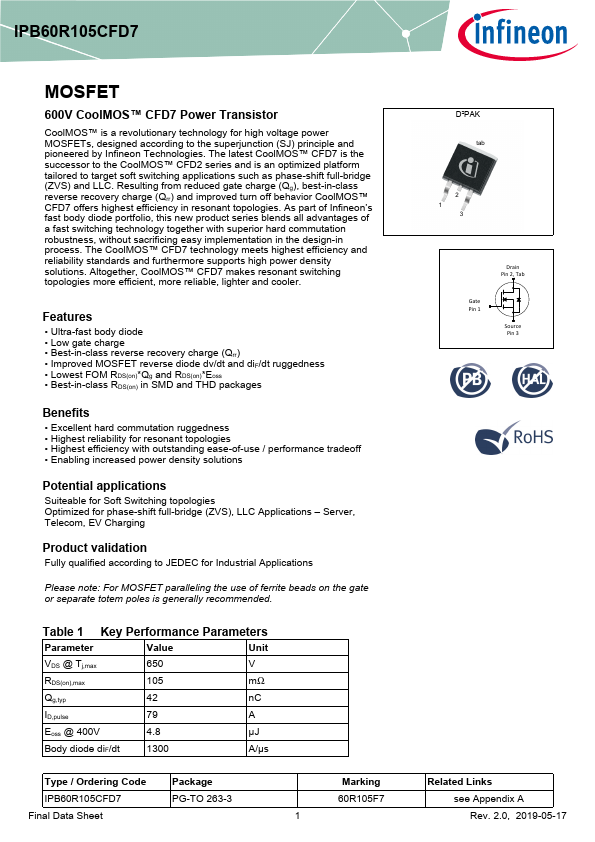

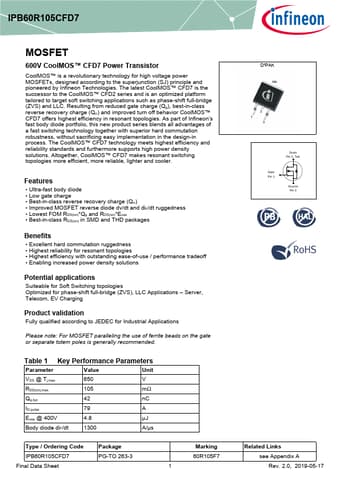

datasheet Preview Page 1 from Datasheet4u.com

IPB60R105CFD7-Infineon.pdf

IPB60R105CFD7 Datasheet Preview — Preview of IPB60R105CFD7 PDF

Datasheet Details

Part number:

IPB60R105CFD7

Manufacturer:

Infineon ↗

File Size:

1.22 MB

Description:

600V MOSFET

Features

* Ultra-fast body diode
* Low gate charge
* Best-in-class reverse recovery charge (Qrr)
* Improved MOSFET reverse diode dv/dt and diF/dt ruggedness
* Lowest FOM RDS(on)
* Qg and RDS(on)
* Eoss
* Best-in-class RDS(on) in SMD and THD packages Benefit

Applications

* such as phase-shift full-bridge (ZVS) and LLC. Resulting from reduced gate charge (Qg), best-in-class reverse recovery charge (Qrr) and improved turn off behavior CoolMOS™ CFD7 offers highest efficiency in resonant topologies. As part of Infineon’s fast body diode portfolio, this new product series
