IPI45N06S4-09 - OptiMOS-T2 Power-Transistor

Infineon Technologies

📥 Download Datasheet

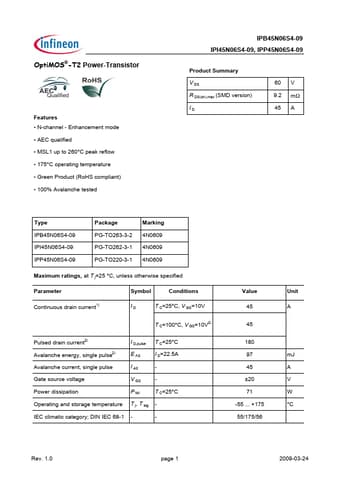

IPI45N06S4-09 Datasheet Preview — Preview of IPI45N06S4-09 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	IPI45N06S4-09
Manufacturer	Infineon ↗ Technologies
File Size	219.05 KB
Description	OptiMOS-T2 Power-Transistor
Datasheet	IPI45N06S4-09_InfineonTechnologies.pdf

IPI45N06S4-09 Product details

Features

N-channel - Enhancement mode.
AEC qualified.
MSL1 up to 260°C peak reflow.
175°C operating temperature.
Green Product (RoHS compliant).
100% Avalanche tested Type IPB45N06S4-09 IPI45N06S4-09 IPP45N06S4-09 Package PG-TO263-3-2 PG-TO262-3-1 PG-TO220-3-1 Marking 4N0609 4N0609 4N0609 Maximum ratings, at T j=25 °C, unless otherwise specified Parameter Continuous drain current1) Symbol ID Conditions T C=25°C, V GS=10V T C=100°C, V GS=10V2) Pul.
