IPI030N10N3 Datasheet - INCHANGE

IPI030N10N3, N-Channel MOSFET

isc N-Channel MOSFET Transistor INCHANGE Semiconductor IPI030N10N3 *.

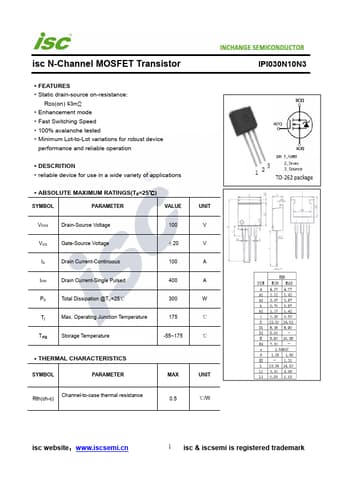

datasheet Preview Page 1 from Datasheet4u.com

IPI030N10N3-INCHANGE.pdf

IPI030N10N3 Datasheet Preview — Preview of IPI030N10N3 PDF

Datasheet Details

Part number:

IPI030N10N3

Manufacturer:

INCHANGE

File Size:

255.91 KB

Description:

N-Channel MOSFET

Features

* Static drain-source on-resistance: RDS(on) ≤3mΩ
* Enhancement mode
* Fast Switching Speed
* 100% avalanche tested
* Minimum Lot-to-Lot variations for robust device performance and reliable operation
* DESCRITION

Applications

* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage 100 VGS Gate-Source Voltage ±20 ID Drain Current-Continuous 100 IDM Drain Current-Single Pulsed 400 PD Total Dissipation @TC=25℃ 300 Tj Max. Operating Junction Temperature 175 Tstg Storage
