IPI070N08N3G - N-Channel MOSFET

Datasheet Summary

Features

Static drain-source on-resistance: RDS(on) ≤6.7mΩ.
Enhancement mode.
Fast Switching Speed.
100% avalanche tested.
Minimum Lot-to-Lot variations for robust device performance and reliable operation.

INCHANGE

📥 Download Datasheet

Datasheet Details

Part number	IPI070N08N3G
Manufacturer	INCHANGE
File Size	283.48 KB
Description	N-Channel MOSFET
Datasheet	IPI070N08N3G Datasheet
Additional preview pages of the IPI070N08N3G datasheet.

📁 Similar Datasheet

IPI070N08N3G - Power-Transistor (Infineon)
IPI070N08N3 - Power-Transistor (Infineon)
IPI072N10N3 - Power Transistor (Infineon)
IPI072N10N3G - Power Transistor (Infineon)
IPI075N15N3 - Power-Transistor (Infineon)
IPI075N15N3G - Power Transistor (Infineon Technologies)
IPI076N12N3 - Power-Transistor (Infineon)
IPI076N12N3G - Power-Transistor (Infineon)
IPI076N15N5 - MOSFET (Infineon)
IPI020N06N - Power Transistor (Infineon Technologies)

Other Datasheets by INCHANGE

IPI072N10N3 - N-Channel MOSFET
IPI075N15N3 - N-Channel MOSFET
IPI076N12N3 - N-Channel MOSFET
IPI076N15N5 - N-Channel MOSFET
IPI030N10N3 - N-Channel MOSFET
IPI037N08N3 - N-Channel MOSFET
IPI041N12N3 - N-Channel MOSFET
IPI04CN10N - N-Channel MOSFET

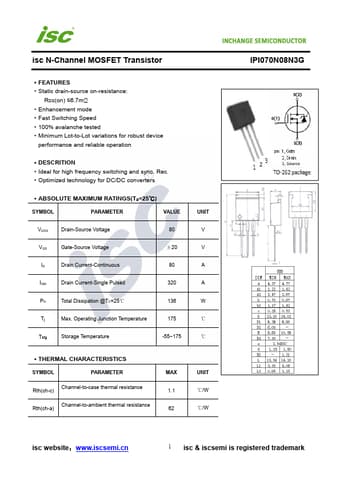

Full PDF Text Transcription

Click to expand full text

isc N-Channel MOSFET Transistor ·FEATURES ·Static drain-source on-resistance: RDS(on) ≤6.7mΩ ·Enhancement mode ·Fast Switching Speed ·100% avalanche tested ·Minimum Lot-to-Lot variations for robust device performance and reliable operation ·DESCRITION ·Ideal for high frequency switching and sync. Rec. ·Optimized technology for DC/DC converters ·ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage 80 VGS Gate-Source Voltage ±20 ID Drain Current-Continuous 80 IDM Drain Current-Single Pulsed 320 PD Total Dissipation @TC=25℃ 136 Tj Max.
