IPI037N08N3, N-Channel MOSFET

isc N-Channel MOSFET Transistor INCHANGE Semiconductor IPI037N08N3 *.

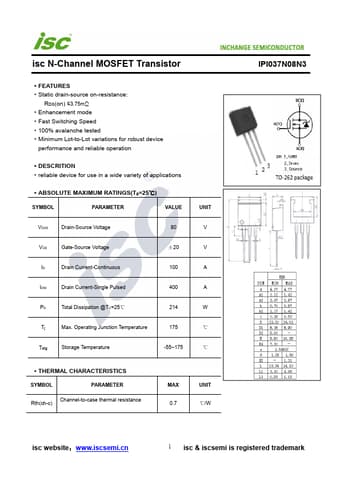

datasheet Preview Page 1 from Datasheet4u.com

IPI037N08N3-INCHANGE.pdf

IPI037N08N3 Datasheet Preview — Preview of IPI037N08N3 PDF

Datasheet Details

Part number:

IPI037N08N3

Manufacturer:

INCHANGE

File Size:

256.67 KB

Description:

N-Channel MOSFET

Features

* Static drain-source on-resistance: RDS(on) ≤3.75mΩ
* Enhancement mode
* Fast Switching Speed
* 100% avalanche tested
* Minimum Lot-to-Lot variations for robust device performance and reliable operation
* DESCRITION

Applications

* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage 80 V VGS Gate-Source Voltage ±20 V ID Drain Current-Continuous 100 A IDM Drain Current-Single Pulsed 400 A PD Total Dissipation @TC=25℃ 214 W Tj Max. Operating Junction Temperature
