IPI45N06S4L-08 - OptiMOS-T2 Power-Transistor

Infineon Technologies

📥 Download Datasheet

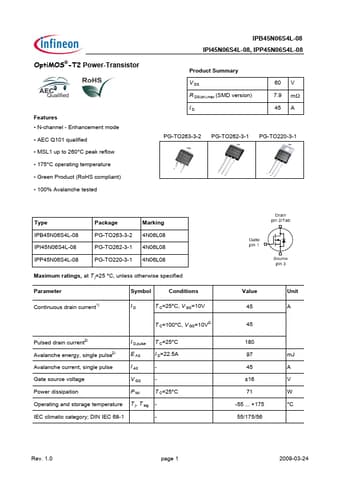

IPI45N06S4L-08 Datasheet Preview — Preview of IPI45N06S4L-08 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	IPI45N06S4L-08
Manufacturer	Infineon ↗ Technologies
File Size	235.19 KB
Description	OptiMOS-T2 Power-Transistor
Datasheet	IPI45N06S4L-08_InfineonTechnologies.pdf

IPI45N06S4L-08 Product details

Features

N-channel - Enhancement mode.
AEC Q101 qualified.
MSL1 up to 260°C peak reflow.
175°C operating temperature.
Green Product (RoHS compliant).
100% Avalanche tested PG-TO263-3-2 PG-TO262-3-1 PG-TO220-3-1 Type IPB45N06S4L-08 IPI45N06S4L-08 IPP45N06S4L-08 Package PG-TO263-3-2 PG-TO262-3-1 PG-TO220-3-1 Marking 4N06L08 4N06L08 4N06L08 Maximum ratings, at T j=25 °C, unless otherwise specified Parameter Continuous drain current1) Symbol ID Condi.
