MCT275 (MCT270 - MCT277) Industry Standard Single Channel 6 Pin DIP Optocoupler

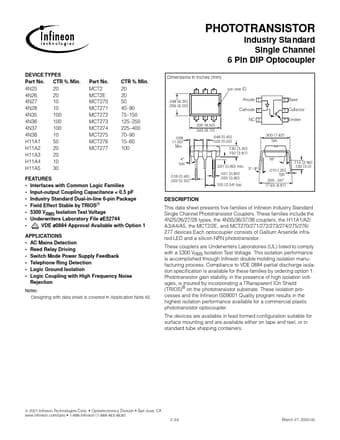

📥 Download Datasheet Datasheet Preview Page 1

Description

PHOTOTRANSISTOR Industry Standard Single Channel 6 Pin DIP Optocoupler DEVICE TYPES Part No.CTR % Min.4N25 20 4N26 20 4N27 10 4N28 10 4N35 100 4N36 .
This data sheet presents five families of Infineon Industry Standard Single Channel Phototransistor Couplers.

📥 Download Datasheet

Preview of MCT275 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
MCT275
Manufacturer
Infineon ↗ Technologies
File Size
408.09 KB
Datasheet
MCT275_InfineonTechnologies.pdf
Description
(MCT270 - MCT277) Industry Standard Single Channel 6 Pin DIP Optocoupler

Features

* Interfaces with Common Logic Families
* Input-output Coupling Capacitance < 0.5 pF
* Industry Standard Dual-in-line 6-pin Package
* Field Effect Stable by TRIOS®
* 5300 VRMS Isolation Test Voltage
* Underwriters Laboratory File #E52744
* V VD

Applications

* AC Mains Detection
* Reed Relay Driving
* Switch Mode Power Supply Feedback
* Telephone Ring Detection
* Logic Ground Isolation
* Logic Coupling with High Frequency Noise Rejection Notes: Designing with data sheet is covered in Application Note 45.
