MCT270-X009, Optocoupler / Phototransistor Output / With Base Connection

VISHAY MCT270/ 1/ 2/ 3/ 4/ 5/ 6/ 7 Vishay Semiconductors Optocoupler, Phototransistor Output, With Base Connection .
The MCT27x family is an Industry Standard Single Channel Phototransistor Couplers.

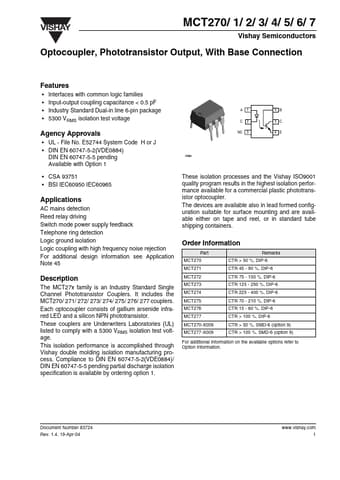

datasheet Preview Page 1 from Datasheet4u.com

MCT270-X009_VishaySiliconix.pdf

MCT270-X009 Datasheet Preview — Preview of MCT270-X009 PDF

Datasheet Details

Part number:

MCT270-X009

Manufacturer:

Vishay ↗ Siliconix

File Size:

209.65 KB

Description:

Optocoupler / Phototransistor Output / With Base Connection

Features

* Interfaces with common logic families Input-output coupling capacitance < 0.5 pF Industry Standard Dual-in line 6-pin package 5300 VRMS isolation test voltage A C NC 1 2 3 6 B 5 C 4 E Agency Approvals
* UL - File No. E52744 System Code H or J

Applications

* AC mains detection Reed relay driving Switch mode power supply feedback Telephone ring detection Logic ground isolation Logic coupling with high frequency noise rejection For additional design information see Application Note 45 These isolation processes and the Vishay ISO9001 quality program resul
