MCT277 (MCT270 - MCT277) Industry Standard Single Channel 6 Pin DIP Optocoupler

This data sheet presents ﬁve families of Inﬁneon Industry Standard Single Channel Phototransistor Couplers. These families include the 4N25/26/27/28 types, the 4N35/36/37/38 couplers, the H11A1/A2/ A3/A4/A5, the MCT2/2E, and MCT270/271/272/273/274/275/276/ 277 devices.Each optocoupler consists of Ga.

PHOTOTRANSISTOR Industry Standard Single Channel 6 Pin DIP Optocoupler DEVICE TYPES Part No. CTR % Min. 4N25 20 4N26 20 4N27 10 4N28 10 4N35 100 4N36 100 4N37 100 4N38 10 H11A1 50 H11A2 20 H11A3 20 H11A4 10 H11A5 30 Dimensions in Inches (mm) Part No. MCT2 MCT2E MCT270 MCT271 MCT272 MCT273 MCT274 MCT275 MCT276 MCT277 CTR % Min. 20 20 50 45 90 75 150 125 250 225 400 70 90 15 60 100 3 .248 (6.30) .256 (6.50) 4 2 1 pin one ID Anode 1 Cathode 2 5.

MCT277 Features

* Interfaces with Common Logic Families

* Input-output Coupling Capacitance < 0.5 pF

* Industry Standard Dual-in-line 6-pin Package

* Field Effect Stable by TRIOS®

* 5300 VRMS Isolation Test Voltage

* Underwriters Laboratory File #E52744

* V VD

MCT277 Datasheet (408.09 KB)

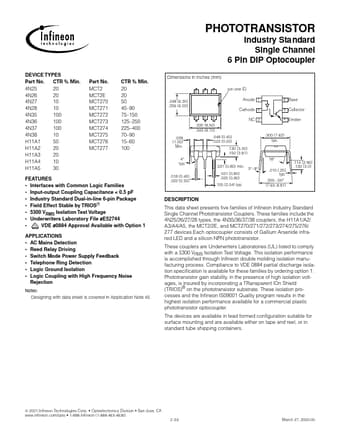

MCT277 Datasheet Preview — Preview of MCT277 PDF

Datasheet Details

Part number:

MCT277

Manufacturer:

Infineon ↗ Technologies

File Size:

408.09 KB

Description:

(mct270 - mct277) industry standard single channel 6 pin dip optocoupler.
