MCT273 Datasheet - Vishay Siliconix

MCT273 Optocoupler / Phototransistor Output / With Base Connection

The MCT27x family is an Industry Standard Single Channel Phototransistor Couplers. It includes the MCT270/ 271/ 272/ 273/ 274/ 275/ 276/ 277 couplers. Each optocoupler consists of gallium arsenide infrared LED and a silicon NPN phototransistor. These couplers are Underwriters Laboratories (UL) liste.

MCT273 Features

* Interfaces with common logic families Input-output coupling capacitance < 0.5 pF Industry Standard Dual-in line 6-pin package 5300 VRMS isolation test voltage A C NC 1 2 3 6 B 5 C 4 E Agency Approvals

* UL - File No. E52744 System Code H or J

MCT273_VishaySiliconix.pdf

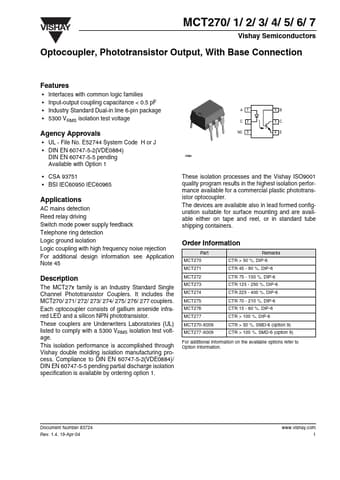

MCT273 Datasheet Preview — Preview of MCT273 PDF

Datasheet Details

Part number:

MCT273

Manufacturer:

Vishay ↗ Siliconix

File Size:

209.65 KB

Description:

Optocoupler / phototransistor output / with base connection.
