SCD5583A (SCD5580A - SCD5584A) 8-Character 5 x 5 Dot Matrix Serial Input Dot Addressable Intelligent Display

The SCD5580A (Red), SCD5581A (Yellow), SCD5582A (HER), SCD5583A (Green) and SCD5584A (HEG) are eight digit dot addressable 5 x 5 matrix, Serial Input, Intelligent Display devices. The eight 0.145" (3.68 mm) high digits are packaged in a transparent, 0.3" pin spacing plastic DIP. The on-board CMOS ha.

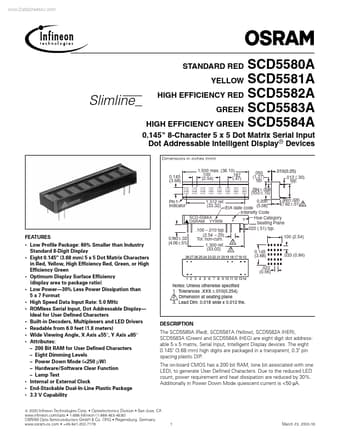

www.DataSheet4U.com SCD5580A YELLOW SCD5581A HIGH EFFICIENCY RED SCD5582A Slimline GREEN SCD5583A HIGH EFFICIENCY GREEN SCD5584A STANDARD RED 0.145" 8-Character 5 x 5 Dot Matrix Serial Input Dot Addressable Intelligent Display® Devices Dimensions in inches (mm) 1.500 max. (38.10) .100 .187 (.47) (2.54) .050 (1.27) typ. .394 ± .006 (10.0 ± .15) .300±.020 0.200 1.312 ref. (7.62 ±.51) 2 (33.32) EIA date code (5.08) Intensity Code SCD-558XA Hue Category Z Y OSRAM YYWW Seating Plane .020 (.51) typ. .

SCD5583A Features

* Low Profile Package: 60% Smaller than Industry Standard 8-Digit Display

* Eight 0.145" (3.68 mm) 5 x 5 Dot Matrix Characters in Red, Yellow, High Efficiency Red, Green, or High Efficiency Green

* Optimum Display Surface Efficiency (display area to package ratio)

* Low P

SCD5583A Datasheet (453.63 KB)

Preview of SCD5583A PDF
SCD5583A Datasheet Preview Page 2 SCD5583A Datasheet Preview Page 3

Datasheet Details

Part number:

SCD5583A

Manufacturer:

Infineon ↗ Technologies

File Size:

453.63 KB

Description:

(scd5580a - scd5584a) 8-character 5 x 5 dot matrix serial input dot addressable intelligent display.
