SCD5581, SCD5580 - (SCD5580 - SCD5584) Serial Input Dot Addressable Intelligent Display

Name: SCD5581
SKU: SCD5581-571203

Siemens Semiconductor

📥 Download Datasheet

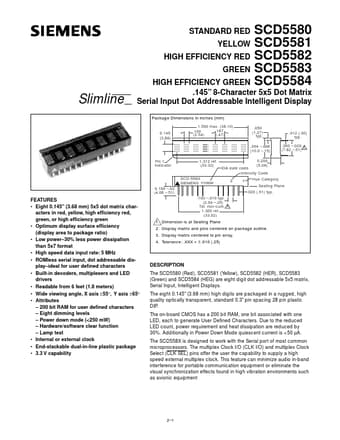

SCD5581 Datasheet Preview — This datasheet PDF includes multiple part numbers: SCD5581, SCD5580. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	SCD5581, SCD5580
Manufacturer	Siemens Semiconductor
File Size	140.56 KB
Description	(SCD5580 - SCD5584) Serial Input Dot Addressable Intelligent Display
Datasheet	SCD5580_SiemensSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: SCD5581, SCD5580. Please refer to the document for exact specifications by model.

SCD5581 Product details

Description

The SCD5580 (Red), SCD5581 (Yellow), SCD5582 (HER), SCD5583 (Green) and SCD5584 (HEG) are eight digit dot addressable 5x5 matrix, Serial Input, Intelligent Displays.

Features

Eight 0.145" (3.68 mm) 5x5 dot matrix characters in red, yellow, high efﬁciency red, green, or high efﬁciency green.
Optimum display surface efﬁciency (display area to package ratio).
Low power.
30% less power dissipation than 5x7 format.
High speed data input rate: 5 MHz.
ROMless serial input, dot addressable display.
ideal for user deﬁned characters.
Built-in decoders, multiplexers and LED drivers.
Readable from 6 fe.
