SCD5580 Datasheet - Siemens Semiconductor

SCD5580 (SCD5580 - SCD5584) Serial Input Dot Addressable Intelligent Display

The SCD5580 (Red), SCD5581 (Yellow), SCD5582 (HER), SCD5583 (Green) and SCD5584 (HEG) are eight digit dot addressable 5x5 matrix, Serial Input, Intelligent Displays. The eight 0.145" (3.68 mm) high digits are packaged in a rugged, high quality optically transparent, standard 0.3" pin spacing 28 pin .
www.DataSheet4U.com SCD5580 YELLOW SCD5581 HIGH EFFICIENCY RED SCD5582 GREEN SCD5583 HIGH EFFICIENCY GREEN SCD5584 STANDARD RED Slimline .145” 8-Character 5x5 Dot Matrix Serial Input Dot Addressable Intelligent Display Package Dimensions in inches (mm) 1.500 max. (38.10) .187 .100 (.47) (2.54) .050 (1.27) typ. .394 .006 (10.0 .15) Pin 1 Indicator 1.312 ref. (33.32) 0.145 (3.68) .012 (.30) typ. .300 .020 (7.62 .51) 1 0.160 .02 (4.06 .51).

SCD5580 Features

* Eight 0.145" (3.68 mm) 5x5 dot matrix characters in red, yellow, high efficiency red, green, or high efficiency green

* Optimum display surface efficiency (display area to package ratio)

* Low power

* 30% less power dissipation than 5x7 format

* High speed data i

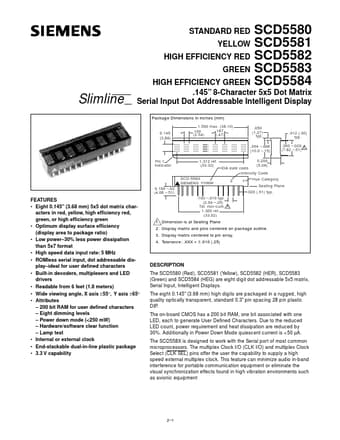

SCD5580_SiemensSemiconductor.pdf

Preview of SCD5580 PDF
SCD5580 Datasheet Preview Page 2 SCD5580 Datasheet Preview Page 3

Datasheet Details

Part number:

SCD5580

Manufacturer:

Siemens Semiconductor

File Size:

140.56 KB

Description:

(scd5580 - scd5584) serial input dot addressable intelligent display.
